The full Arid Carbon range with its four builds:S, R, RR and RR SLcomplete with the spec updates, is now available in four striking new colours:Aura Blue, Ultraviolet, Mirage Silver, and Superblack.
The full Arid Carbon range with its four builds:S, R, RR and RR SLcomplete with the spec updates, is now available in four striking new colours:Aura Blue, Ultraviolet, Mirage Silver, and Superblack.
Mondraker

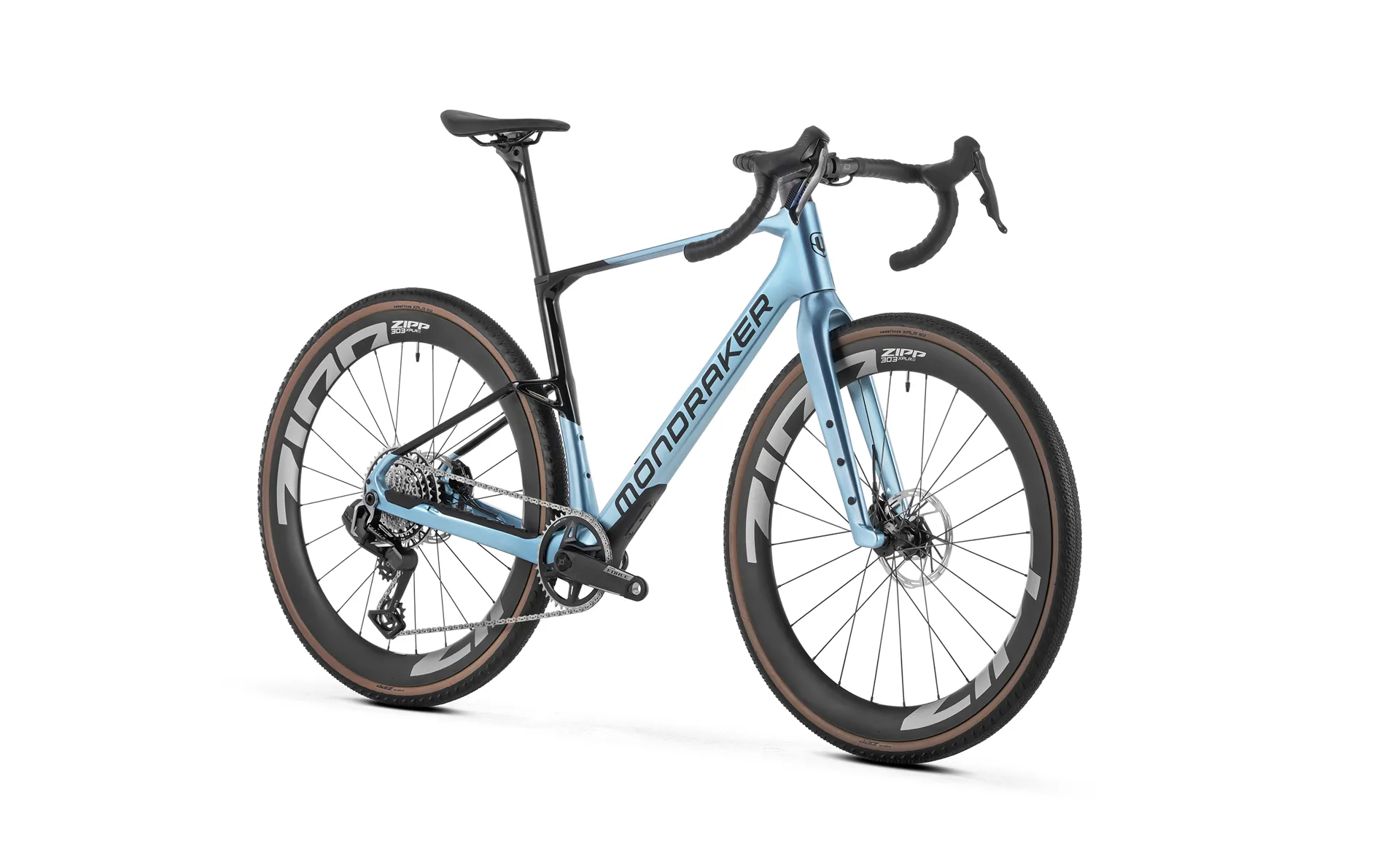

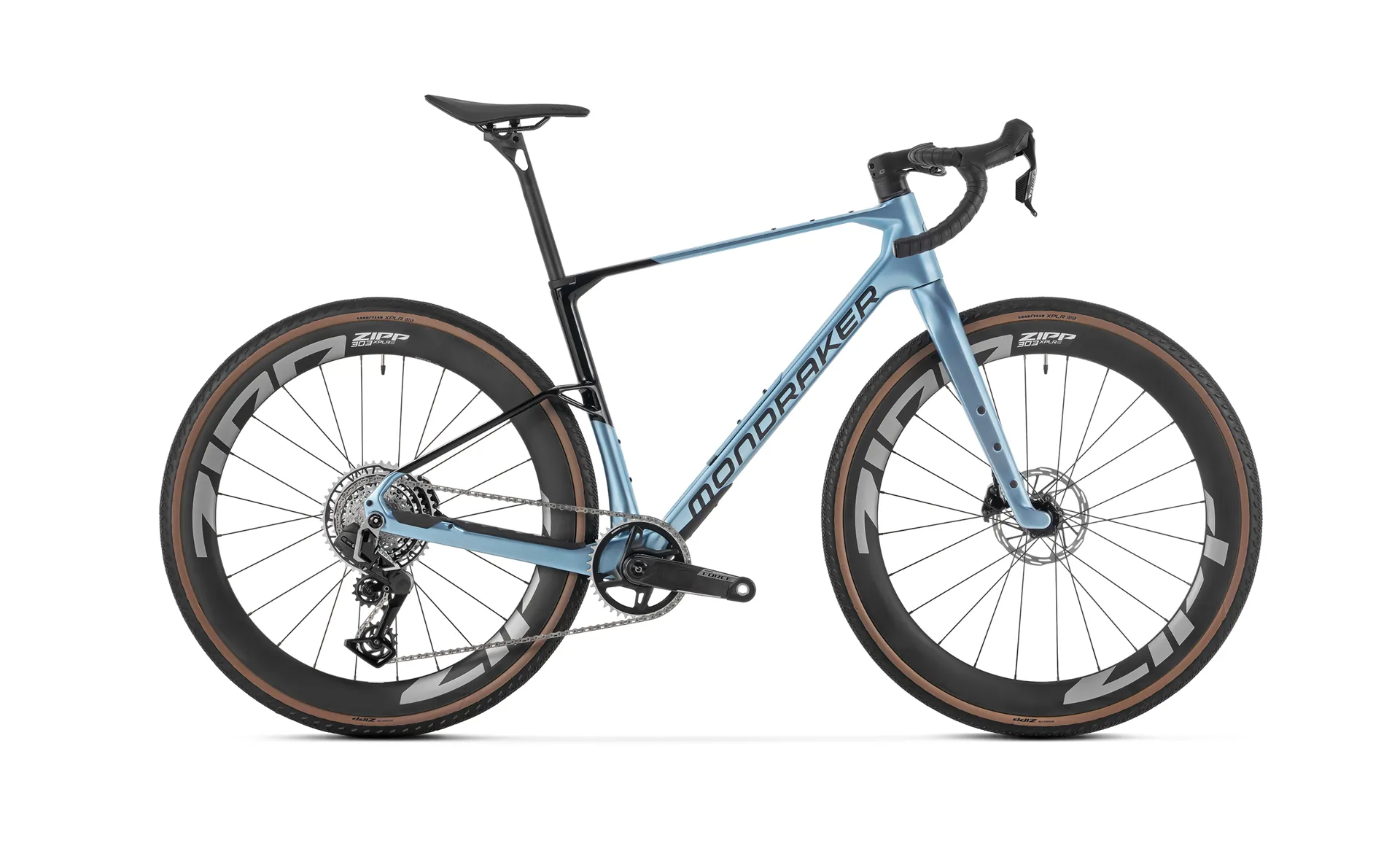

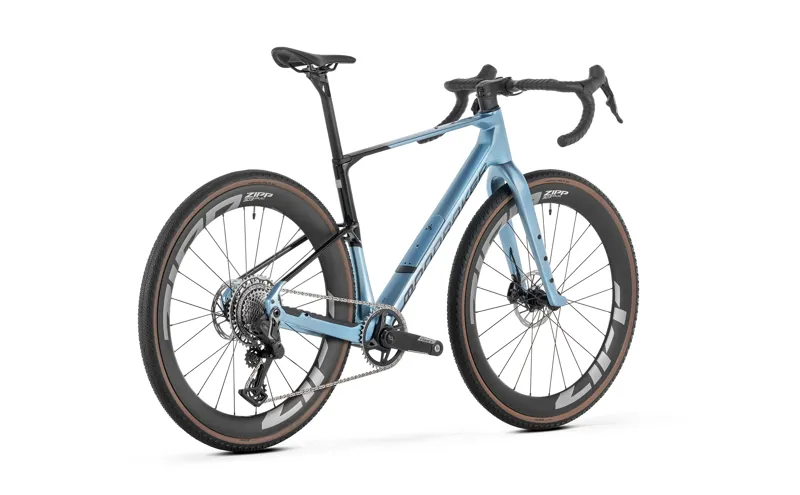

MONDRAKER ARID CARBON RR Gravel Bike Aura Blue

£5,799.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

MONDRAKER ARID CARBON RR Gravel Bike Aura Blue

Season:2026

Brand:Mondraker

Code:MACRRAB-

COMPLIANCE AND STIFFNESS COMBINED
During the Stealth Air Carbon fabrication process we optimize every tube and every joint to best meet the design criteria, whether to increase stiffness and responsiveness from the bottom bracket or headtube areas, or to improve compliance from the rear triangle for better grip and comfort. The stiffness and responsiveness of the main frame is specially noticeable when you put the power down and lends itself to greater pedalling efficiency and acceleration on hardpack.



Altogether, the compliance of the seat stays combined with the stiffness of the frame equal greater average speed over unforgiving terrain. It's something you’ll notice from the very first time you turn the cranks.

50mm wide tyre

We’ve really gone to town on the details. ARID has HHG internal cable guidance, a UDH derailleur hanger for stiffness and shifting precision, six water-bottle mounts you can use to various ends, and generous frame and fork dimensions for up to 50mm wide tyres for riders looking to tackle the roughest of terrains.The bike also features the all-new Mondraker ‘Carry-On’ downtube storage systemso you can carry your belongings without the need for packs that would otherwise spoil the looks of your ARID.



Components

Technical specs

  • frame

    Frame

    Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, UDH, 1X drivetrain design, Flatmount brake compatible.

    sizes

    Sizes

    S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm

  • fork

    Fork

    Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork

    headset

    Headset

    Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.

  • stem

    Stem

    Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm

    handlebar

    Handlebar

    Onoff S9 GR CARBON 16º bar flare. Width sizes S size: 420mm M size: 420mm ML size: 440mm L size: 460mm XL size: 460mm

  • grips

    Grips

    Onoff HEX Bartape

    seatpost

    Seatpost

    Onoff S9 Carbon 15-R, diameter 27.2mm, length: S size: 400mm, M size: 400mm, ML size 400mm, L size: 450m, XL size: 450mm

  • saddle

    Saddle

    Fizik Vento Argo X5 140mm

    front brake

    Front brake

    Sram Force AXS HRD 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad

  • rear brake

    Rear brake

    Sram Force AXS HRD, 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad

    brake lever

    Brake lever

    Sram Force, eTap shift logic, Bonus button ANT+, tooled reach adjust, carbon brake lever

  • rims

    Rims

    Zipp 303 XPLR S, carbon, 32mm internal width, 54mm rim depth, hookless, 24 spokes

    spokes

    Spokes

    CX-Sprint - Black

  • front hub

    Front hub

    76 Disc Brake, 12x100mm,Centerlock

    rear hub

    Rear hub

    176 Disc Brake, 12x142mm, XDR 3 Pawls leaf springs, Centerlock. XDR Freehub

  • front tire

    Front tire

    Goodyear XPLR Inter 700x45

    rear tire

    Rear tire

    Goodyear XPLR Inter 700x45

  • crankset

    Crankset

    Sram Force XPLR AXS Carbon, Power meter, DUB WIDE axle, S size: 165mm M size: 165mm ML size: 170mm L size: 172,5mm XL size: 172,5mm, CL 47,5

    rings

    Rings

    Sram 40T Direct mount, alloy, narrow-wide,

  • bottom bracket

    Bottom bracket

    Sram DUB T47 BSA, sealed bearings, 85,5mm

    chain

    Chain

    Sram Force, Flattop, 13s, Powerlock

  • rear derrailleur

    Rear derrailleur

    Sram Force XPLR AXS, 13s

    shift levers

    Shift levers

    Sram Force AXS HRD, 13s,

  • casette

    Casette

    Sram XG-1371, 10-46T, 13s

    weight

    Weight

    8,8 kg

Sizing Information
Mondraker Arid Geometry

Frame size
SMM/LLXL
ASeattube length410 mm450 mm480 mm510 mm540 mm
BToptube length520 mm550 mm580 mm600 mm630 mm
CBottom bracket drop-75-75-75-75-75
DBottom bracket height269 mm269 mm269 mm269 mm269 mm
EChainstay length425 mm425 mm425 mm425 mm425 mm
FSeat tube angle73°73°73°73°73°
GEffective seattube angle74°74°74°74°74°
HHeadtube angle70°70°70°70°70°
IFork Offset45 mm45 mm45 mm45 mm45 mm
JWheelbase1003 mm1035 mm1067 mm1089 mm1121 mm
KHeadtube length100 mm125 mm145 mm175 mm200 mm
LReach363 mm386 mm411 mm423 mm446 mm
MStack548 mm572 mm591 mm619 mm642 mm
NStem Length60 mm70 mm70 mm80 mm90 mm
OFork Height420 mm420 mm420 mm420 mm420 mm
