Rough roads, gravel or dirt. However you choose to roll, this bike does it all.
Rough roads, gravel or dirt. However you choose to roll, this bike does it all.
Giant

Giant Revolt Advanced 2 Gravel Bike in Carbon

£2,499.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

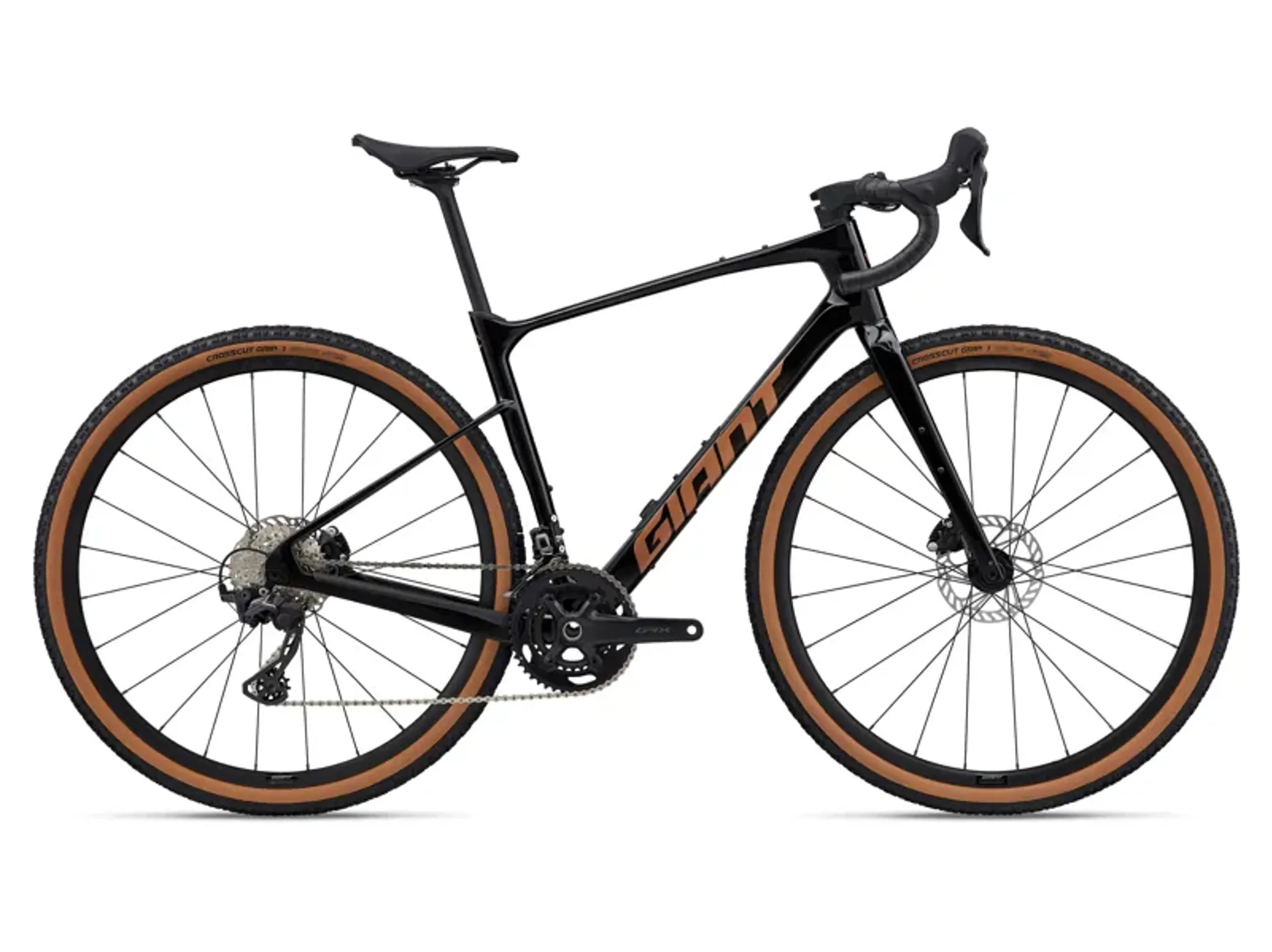

Giant Revolt Advanced 2 Gravel Bike in Carbon

Season:2026

Brand:Giant

Code:9080024CBN

Rough roads, gravel or dirt. However you choose to roll, this bike does it all.

The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.

Features:

  • Fast and light
    Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.
  • Tuned compliance
    Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
  • Adaptable to the terrain
    A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
Technical Information
  • Sizes
    XS, S, M, M/L, L, XL

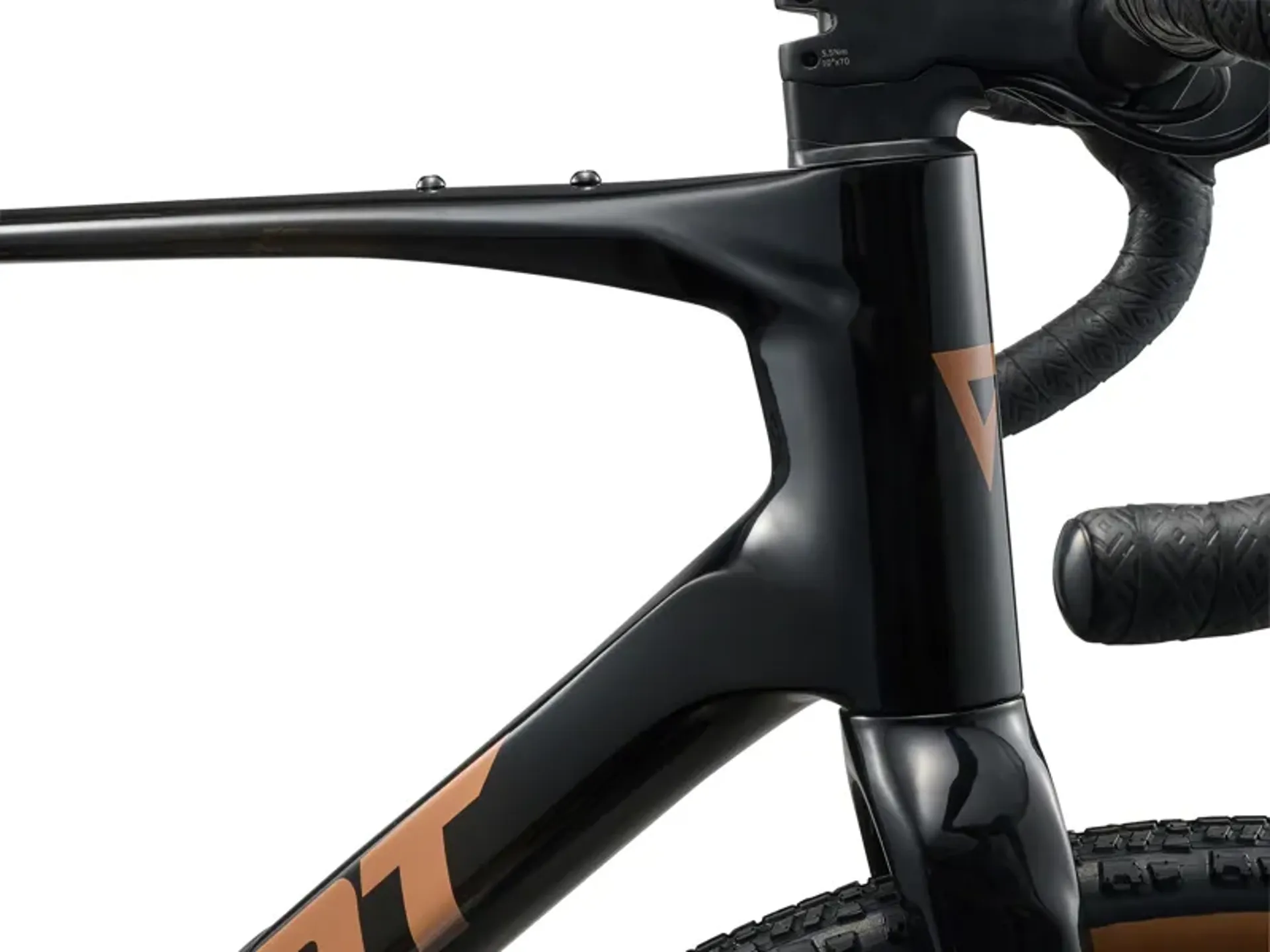

  • Frame
    Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage

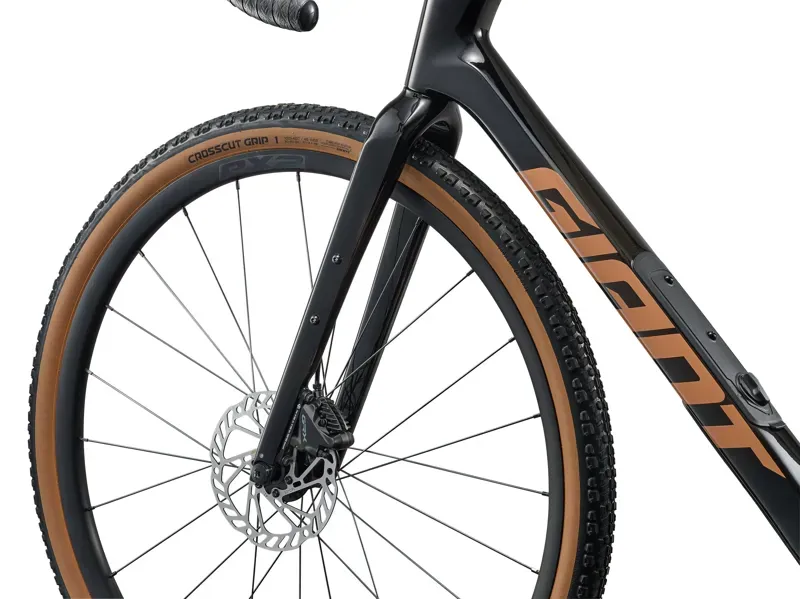

  • Fork
    Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc

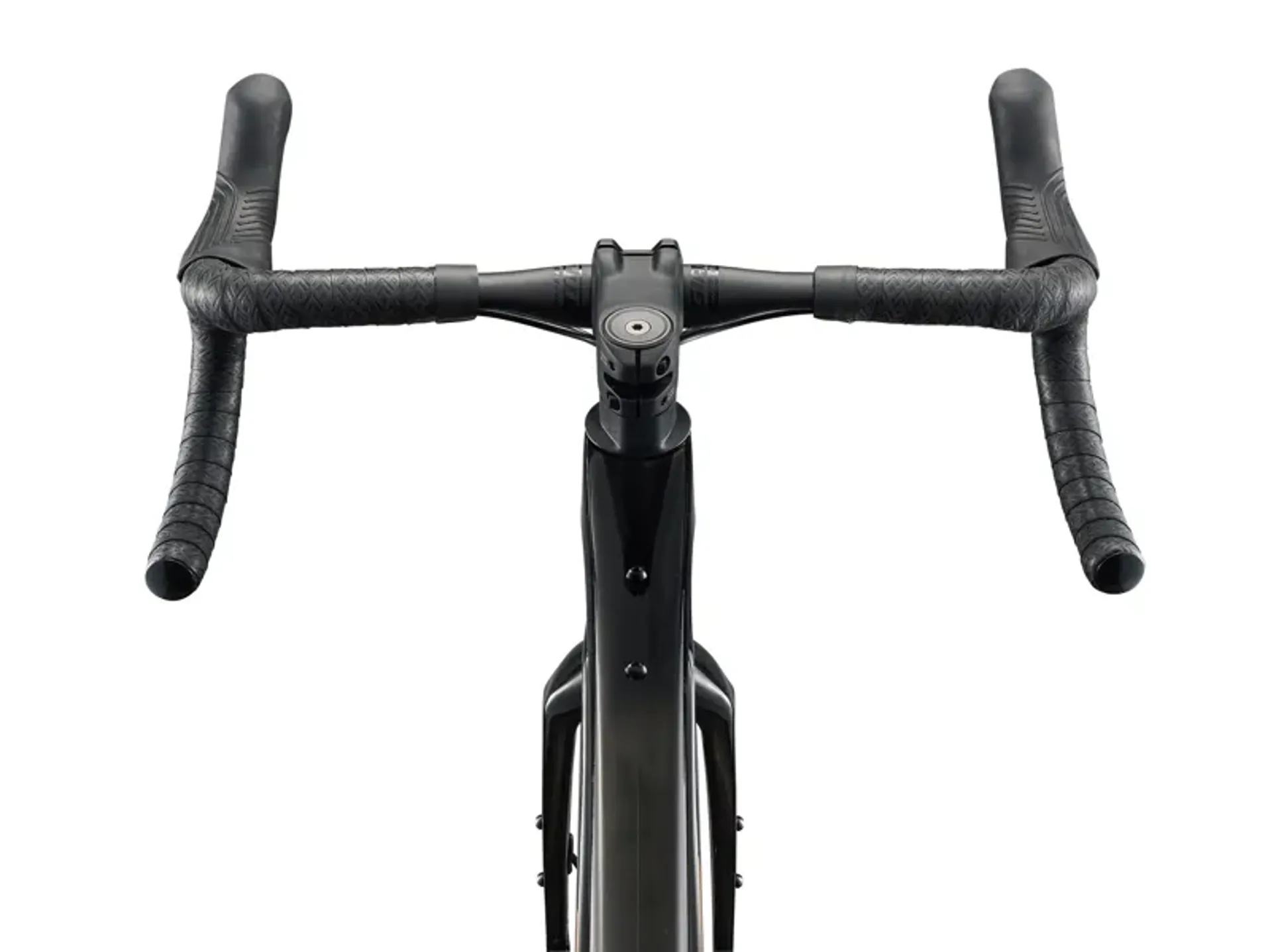

  • Handlebar
    Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
  • Grips
    Stratus Lite 3.0
  • Stem
    Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
  • Seatpost
    Giant D-Fuse, composite, 14mm offset
  • Saddle
    Giant Grit
  • Pedals
    PEDALS NOT SUPPLIED
  • Shifters
    Shimano GRX RX-610, 2x12
  • Front Derailleur
    Shimano GRX RX-820
  • Rear Derailleur
    Shimano GRX RX-820
  • Brakes
    Shimano BR-RX410hydraulic, Giant MPH rotors [F]160mm, [R]160mm
  • Brake Levers
    Shimano GRX RX-610 hydraulic
  • Cassette
    Shimano CS-HG710, 12-speed, 11x36
  • Chain
    KMC X12L-1

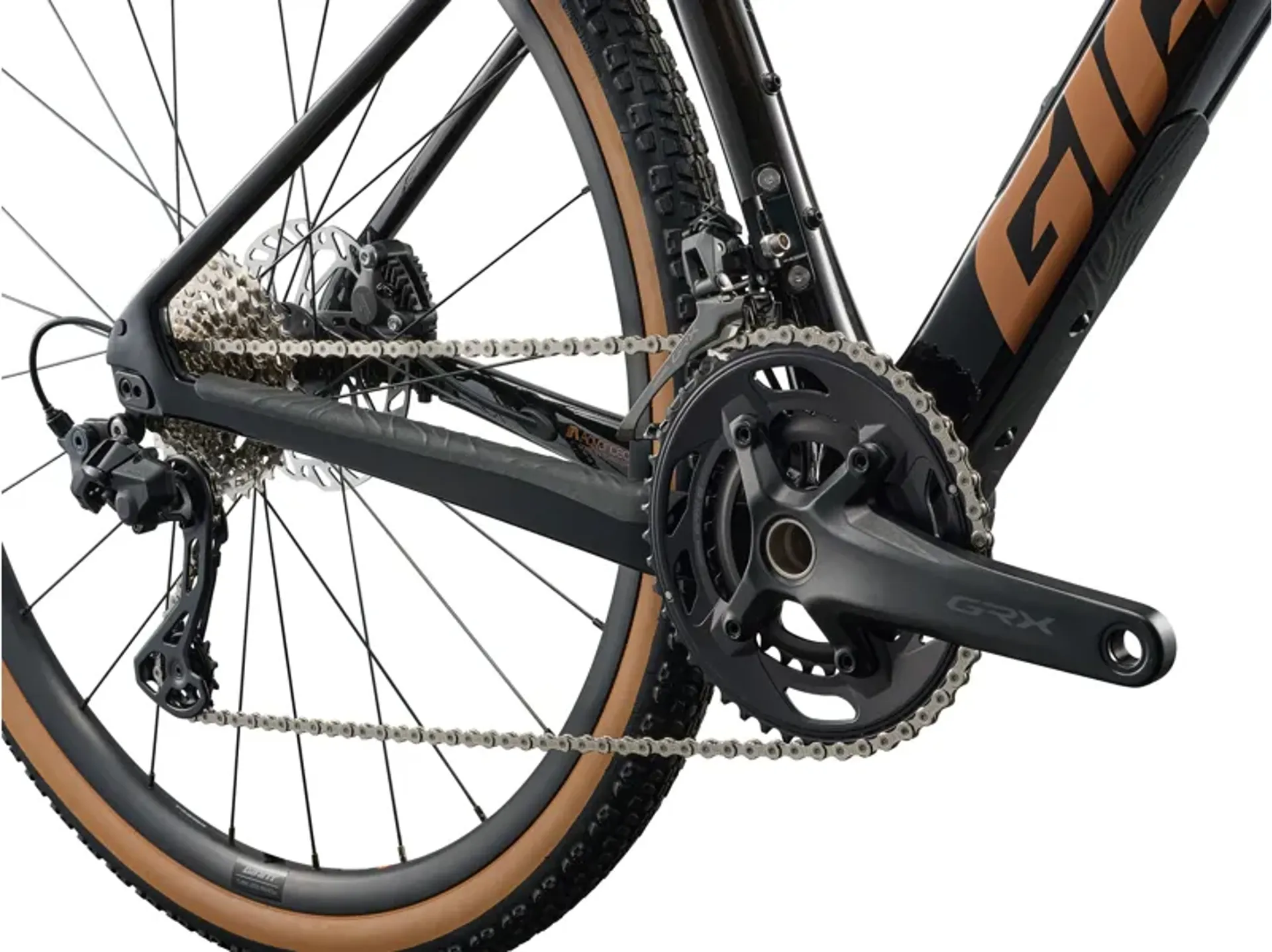

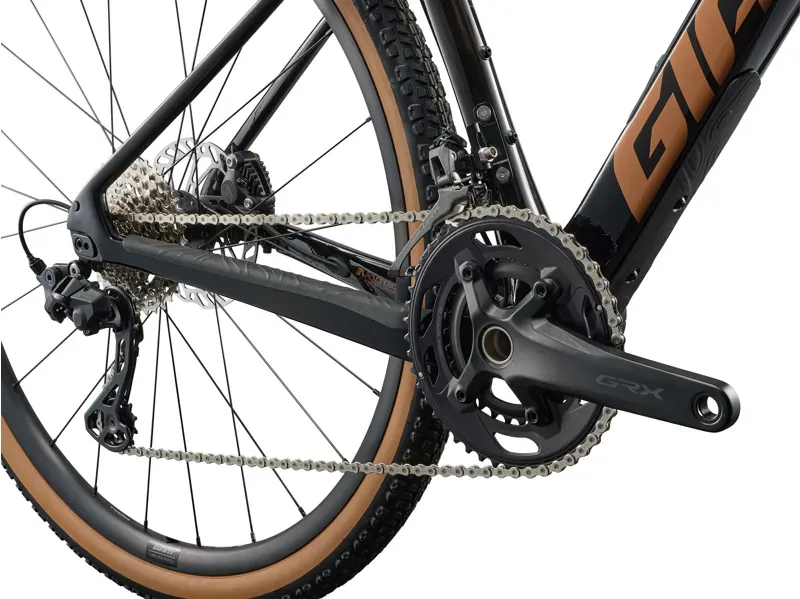

  • Crankset
    Shimano FC-RX610-2, 30/46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
  • Bottom Bracket
    Shimano, press fit
  • Rims
    Giant P-X2 , alloy
  • Hubs
    Giant alloy, 12mm thru-axle
  • Spokes
    Sapim
  • Tyres
    Giant Crosscut Grip, 700x45c, tubeless
  • Extras
    tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position, in-frame storage bag
  • Max Tyre Clearance
    53mm
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
Sizing Information
Giant Revolt Geometry 2026

XSSMMLLXL
SHORT|LONGSHORT|LONGSHORT|LONGSHORT|LONGSHORT|LONGSHORT|LONG
ASeat Tube Length(MM)430450470490510530
BSeat Tube Angle74.0°73.5°73.5°73.0°73.0°73.0°
CTop Tube Length(MM)540550560575585600
DHead Tube Length(MM)125135150165180195
EHead Tube Angle70.0°71.0°71.5°72.0°72.0°72.0°
FFork Rake(MM)505050505050
GTrail(MM)78.0|82.072.0|75.068.0|72.065.0|68.065.0|68.065.0|68.0
HWheelbase(MM)1029|10391025|10351030|10401035|10451045|10551061|1071
IChain Stay Length(MM)430|440430|440430|440430|440430|440430|440
JBottom Bracket Drop(MM)80|8180|8180|8180|8180|8180|81
KStack(MM)556570586602616630
LReach(MM)381381387391397407
MStand Over Height(MM)717|724734|741752|759769|776786|793801|810
NHandlebar Width(MM)420420440440460460
OStem Length(MM)506070808090
PCrank Length(MM)170170172172175175
QWheel Size700x 42C |700x 42C |700x 42C |700x 42C |700x 42C |700x 42C |
