Max improvement, Max performance, Max fun!
This new MTB with 120mm travel has been designed to provide the Wilier-Vittoria MTB Factory Team with a modern and versatile race bike featuring: a high-performance suspension system, precise handling response, and safety.
From the very first moment, the new Urta Max SLR will make you feel like you are on a bike that is ideal for competitions but also fun on the most demanding trails.
The Urta Max features a new single-axle damping system. The compression ratio has been optimised to be extremely effective on any terrain type.
The Rock Shox and Fox rear shock absorbers with 45mm travel that are mounted as standard have compression curves specifically tailored to work in symbiosis with the leverage ratio chosen in the design stage.
There are three operating phases: a regressive phase (stiffer and more sustained); a more reactive and sensitive phase, when maximum efficiency during pedalling is required; and a final phase, that is more progressive, to avoid the suspension reaching the end of its stroke.
The two triangles that form the Urta Max SLR frame are made of HUS-MOD high-module carbon fibre, the same used for all top range Wilier products. Maximum stiffness only where necessary.
The front triangle completely integrates the cables within frame, but unlike earlier models - where tubes and sheaths passed through holes made in the carbon fibre - on the Urta Max the brake, derailleur and dropper tubes pass through the headset, similarly to road bikes. This solution provides the bike with an extremely clean and elegant look and, not least, it improves the overall stiffness in the headset area as the absence of holes guarantees continuous modularity and directionality of the carbon fibres.
The rear triangle of the Urta Max is designed with a single-pivot point. The new conrod (stiffened compared to previous versions) is designed to give the frame a maximum travel efficiency of 120mm.
The Urta Max SLR has been designed to accommodate the more modern transmissions currently on the market.
It can mount a front crown up to 38 teeth and the standard issue UDH dropout is also compatible with the new Sram Eagle Transmission assemblies.
The Urta Max SLR leaves the Rossano Veneto factory with a 31.6 mm telescopic seatpost. Each size has a telescopic seatpost with dedicated travel: 100 mm travel for sizes S and M; 125 mm travel for sizes L and XL.
To protect the rear triangle and its bearings, we have designed a special rubber cover which, when installed in the area where the frame triangles meet, avoids mud, dirt and debris affecting the reliability and life of the frame in the long term.
The rear triangle has a 70 mm clearance point for mounting today's most modern off-road tyres up to 2.4” ideal for any type of cross-country road.
The Urta Max geometries have been designed and optimised to mount a 120mm travel fork, with the aim of keeping the rider in racing position, i.e. dropped and gathered.
To do this, we have reduced the stack to a minimum, extending the reach and keeping the bottom bracket lower. It is a solution that allows the rider to stay gathered on the bike, a position that provides better performance.

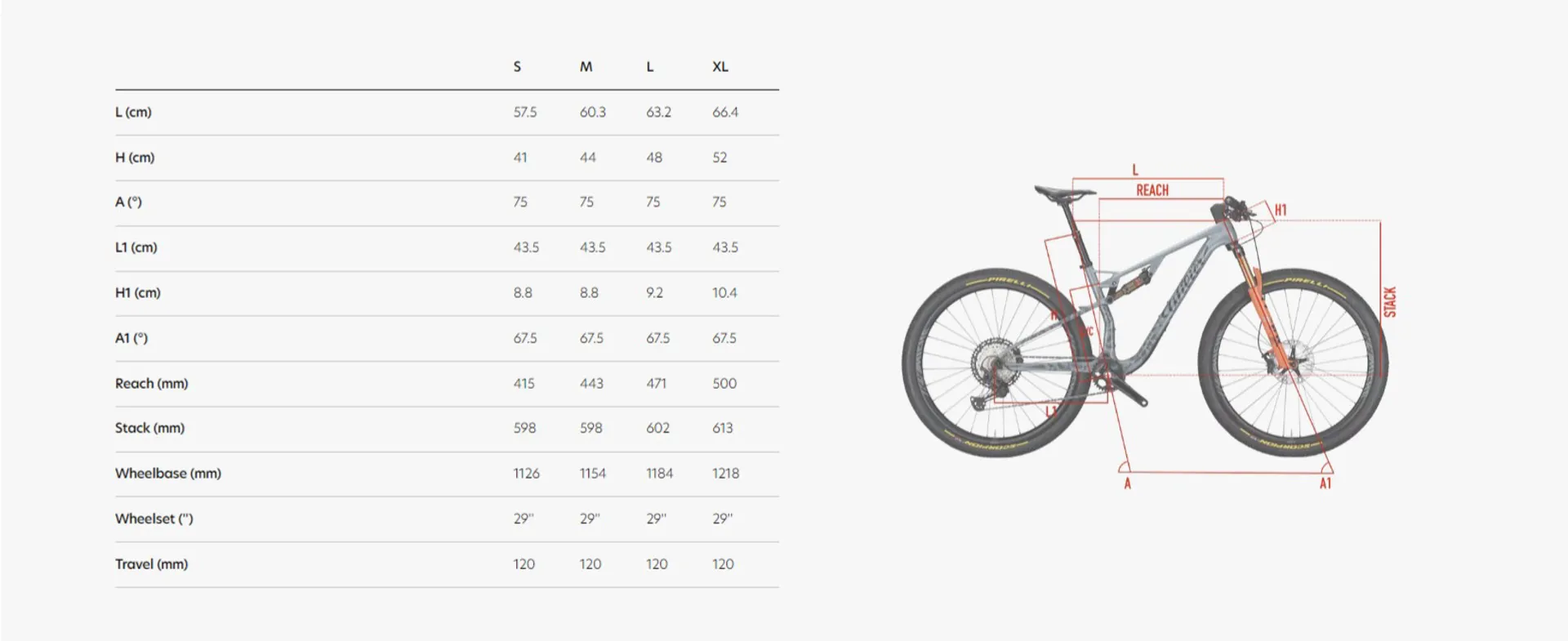

In detail, for size M the stack measures 598 mm and the reach 443 mm, while the steering angle is more open with 67.5° and the seat tube is at a vertical angle of 75°.
With these values, the resulting wheelbase (i.e. the distance between the front and rear wheel centres) is greater than the previous Urta model. All this provides the rider with a greater sense of riding safety and aggressiveness in push position. To do this, we have reduced the stack to a minimum, extending the reach and keeping the bottom bracket lower. It is a solution that allows the rider to stay gathered on the bike, a position that provides better performance.
FRAME
FRAME URTA MAX SLR M PIRELLI
FORK
ROCK SHOX FS SID ULT 3P 120 BK (UR.M)
REAR SHOCK
ROCK SHOX RS SID ULT 3P 190X45 (U.MAX)
HANDLEBAR
WILIER URTA BAR M (75) -27° BLACK
SEATPOST
GIST SEATPOST TELESC. SWITCH SW-100MM
GROUPSET
SHIMANO XT M8100 1X12
WHEELSET
MICHEWSET MTB966 BOOST29 SH SPL 15/12 CL
CRANKSET
SHIMANO CRANK FC-M81001 175 12S 32T
CASSETTE
SHIMANO CASSETTE CS-M8100 12S 10-51
SHIFTERS
SHIMANO SHIFTER SL-M8100-R 12S RAPIDPLUS
BRAKES
SHIMANO BRAKE KIT KM8100 DISC 850MM BLK
SH.BRAKE D.M8100 JKIT 1550 REAR FMOUNT
ROTORS
SHIMANO ROTOR RT-MT800 180MM
SHIMANO ROTOR RT-MT800 160MM
SPECIFICHE
URTA BAR
REAR DERAILLEUR
SHIMANO REAR DER. XT 12S RD-M8100 SGS
BOTTOM BRACKET
SHIMANO BB XT MT8000 PRESS-FIT
CHAIN
SHIMANO CHAIN CN-M7100 12S 120L W/Q-LINK
AXLE / THRU AXLE
REAR AXLE LEVER 12X178.5 P1.0 URTA
HEADSET
ACROS HEADSET AIF610 IS52/28.6/ICR
TIRES
VITTORIA TIRE MEZCALIII 29X2.25 XC-TRAIL
SADDLE
SELLE SHORTFIT 2.0 OPEN-FIT NARR
