The ritchey logic steel frame rides like the dream the elder statesmen amongst us always knew it would and the dream that the less ancient may not yet have experienced.
The ritchey logic steel frame rides like the dream the elder statesmen amongst us always knew it would and the dream that the less ancient may not yet have experienced.
Ritchey

Ritchey Road Logic Rim Frameset in Grey/Yellow

Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

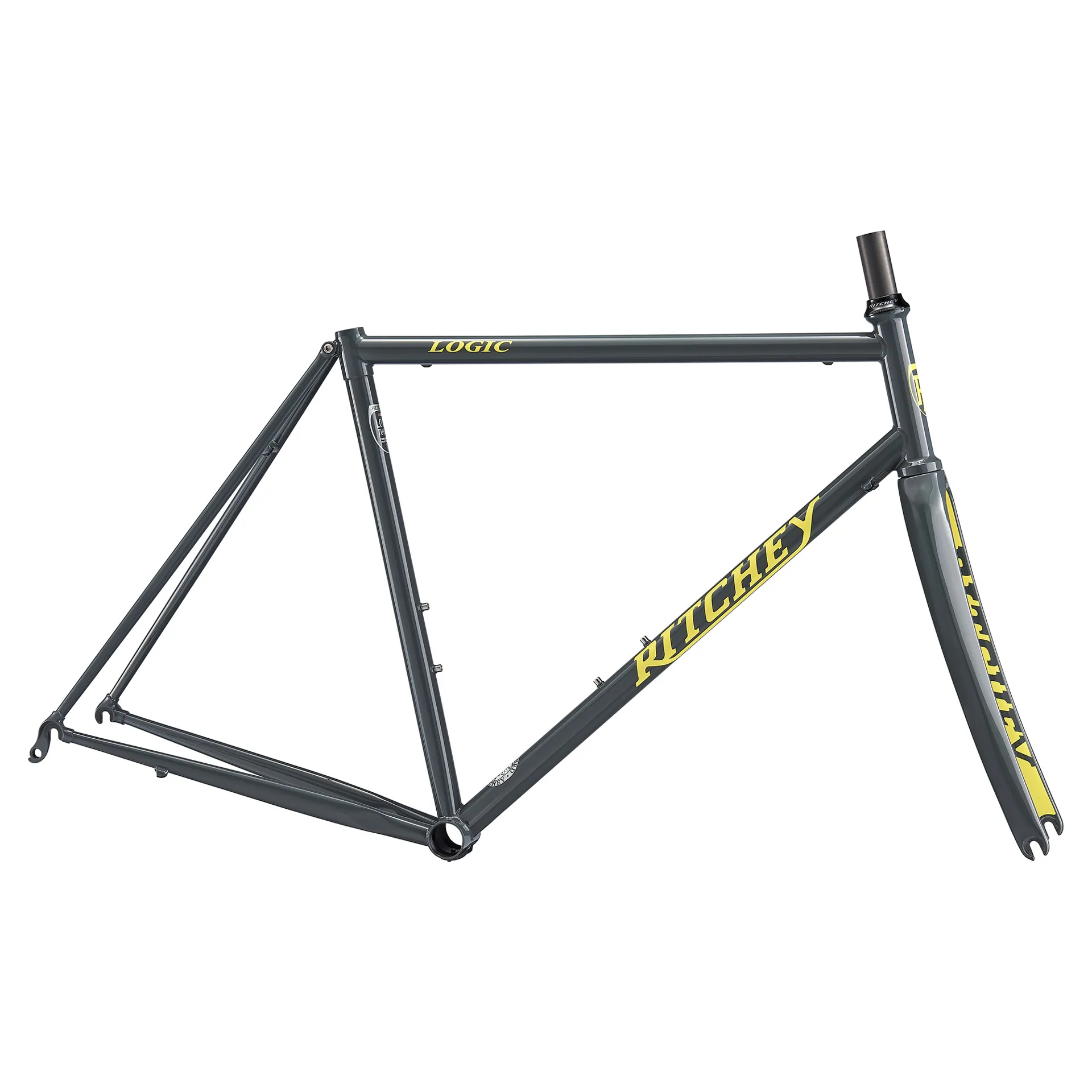

Ritchey Road Logic Rim Frameset in Grey/Yellow

Brand:Ritchey

Code:RT97352867007GRYYEL

The ritchey logic steel frame rides like the dream the elder statesmen amongst us always knew it would and the dream that the less ancient may not yet have experienced.

The new road logic offers a riding experience that's steeped with more than forty years of frame building heritage, innovation and exploration. The beauty of its classic lines unites with modern building techniques and proven materials to deliver a contemporary bicycle that's wonderfully comfortable for long days in the saddle, nimble and stiff enough to win the sprint for that sign, and adequately adaptable to endure roads that might lack proper pavement.

Destined to be a modern classic, tom designed an all-new, heat-treated and triple-butted ritchey logic tubeset for the new road logic, featuring aggressively short-butted sections optimized for tig welding that save weight and improve ride quality. Ritchey’s proprietary forged-and-machined integrated head tube uses standard drop-in bearings which saves 80 grams over a standard head tube design.

The new road logic also enjoys spacing for up to 30c tires and a new ritchey carbon fork with wider tire clearance that will ensure you enjoy a lifetime of pedal turns.

Features:

  • Material: heat-treated, triple-butted ritchey logic steel tubing - tig welded
  • Ultra-light forged and machined straight 1-1/8" headtube
  • Wcs headset included (upper is42/28.6 - 16mm stack height | lower is42/30)
  • Standard quick release front and rear
  • 27.2mm seat tube with integrated seat collar (max torque setting: 6nm)
  • Bront derailleur clamp size: 28.6mm (max torque setting: 2.5nm) - not included
  • Bottom bracket: 68mm - english threaded
  • Crankset min/max ring size: 46/30t to 53/39t
  • External cable routing
  • Bottle mounts: 2
  • Ritchey wcs carbon road fork included
  • 1-1/8" straight steerer with integrated 45-degree crown race
  • Steerer length: 300mm
  • Axle-crown: 371mm
  • Rake/offset: 46mm (sizes 49/51/53cm) – 43mm (sizes 55/57/59cm)
  • Wheel and tire compatibility: 700 x 30c tire clearance (depending on tire/rim manufacturer)
  • Frame max spacing: 38mm
  • Fork max spacing: 40mm
  • Sizes: 49 / 51 / 53 / 55 / 57 / 59cm
  • Frame weight: 1.75kg (size 55)
  • Fork weight: 350g (uncut steerer)
