Whatever the terrain, the logic is comfortable and composed as it glides over the ground, unperturbed by potholes and sudden maneuvers.
Whatever the terrain, the logic is comfortable and composed as it glides over the ground, unperturbed by potholes and sudden maneuvers.
Ritchey

Ritchey Road Logic Disc Frameset in Black

£1,323.99
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

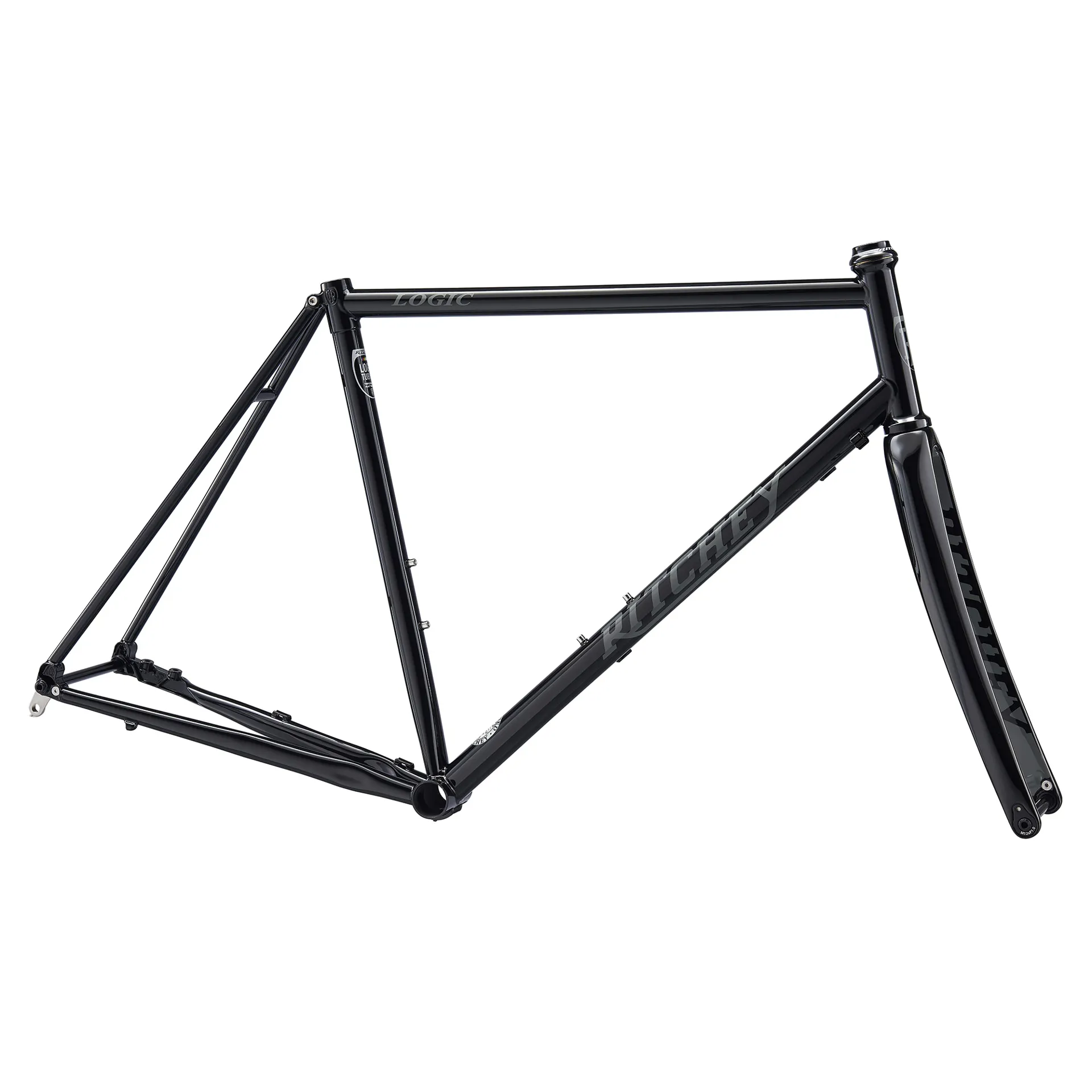

Ritchey Road Logic Disc Frameset in Black

Brand:Ritchey

Code:RT97352817011BLKLOGO

Whatever the terrain, the logic is comfortable and composed as it glides over the ground, unperturbed by potholes and sudden maneuvers.

The new ritchey road logic disc delivers the same amazing ride experience that the bike is known for but adds the stopping power and control of disc brakes. Steeped with more than 40 years of frame-building heritage, innovation, exploration, and lots of riding, the classic lines of this beautiful steel frame and carbon fiber fork unite with modern building techniques and proven materials to deliver a contemporary bicycle that’s wonderfully comfortable for long days in the saddle, nimble and stiff enough to win the sprint for that sign, and adequately adaptable to endure roads that might lack proper pavement.

The frame is built with a heat-treated and triple-butted proprietary ritchey logic tube set and features a straight headtube and aggressively short-butted sections optimized for tig welding that save weight and improve ride quality. The tried and true specs on the frame remain unchanged but now sport a redesigned chainstay for flat-mount disc brake compatibility, thru-axles in the front and rear and a new fork designed specifically for the road logic disc.

Features:

  • Material: heat-treated, triple-butted ritchey logic steel tubing - tig welded

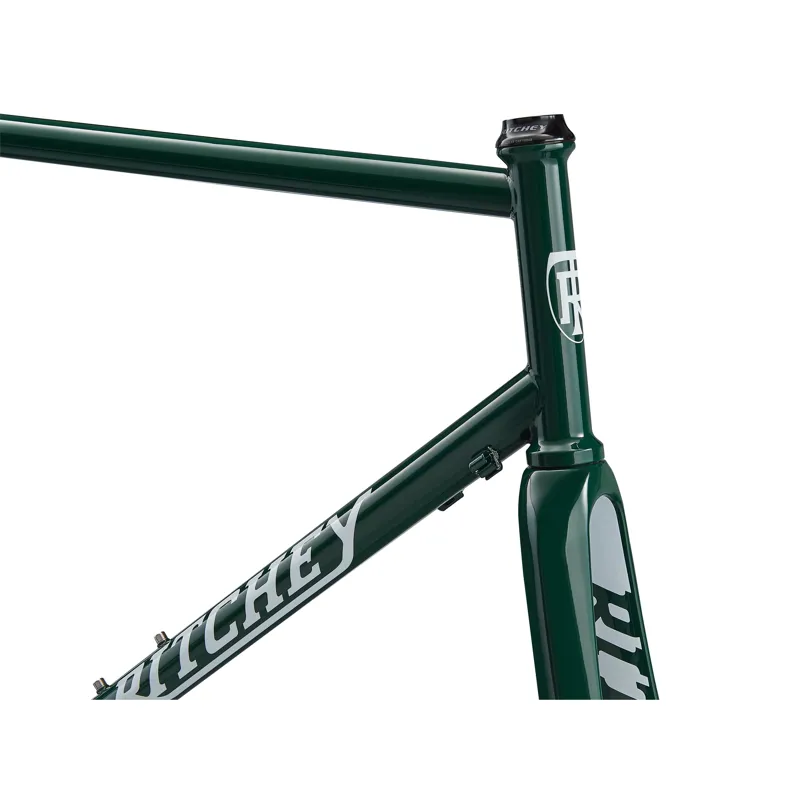

  • Ultra-light forged and machined straight 1-1/8" headtube
  • Wcs headset included (upper is42/28.6 - 16mm stack height | lower is42/30)

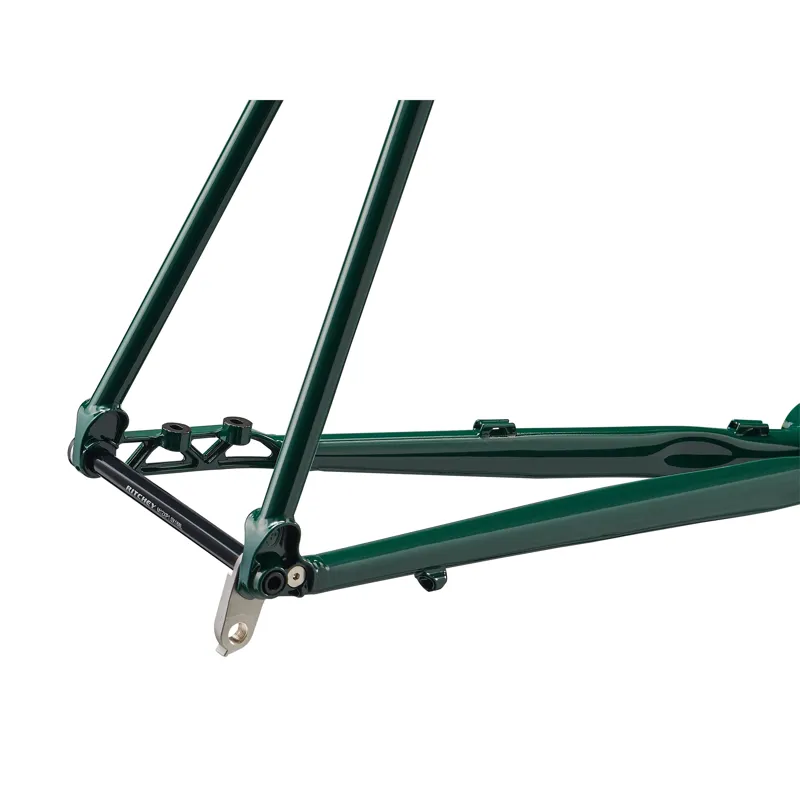

  • 142mm spacing (12mm alloy thru-axle included)
  • Replaceable stainless-steel derailleur hanger

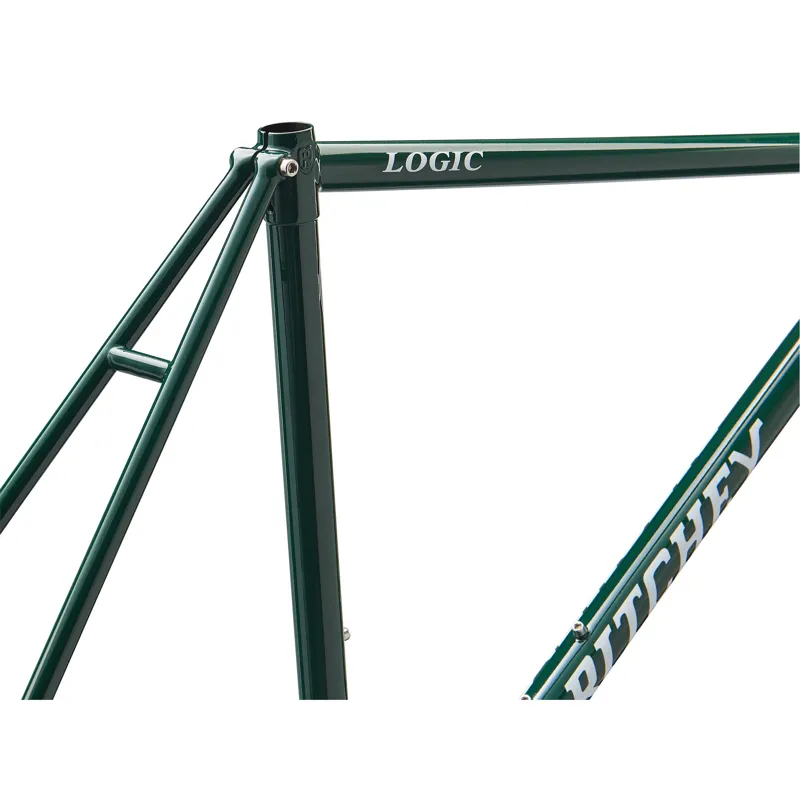

  • 27.2mm seat tube with integrated seat collar (max torque setting: 6nm)
  • Front derailleur clamp size: 28.6mm (max torque setting: 2.5nm) - not included

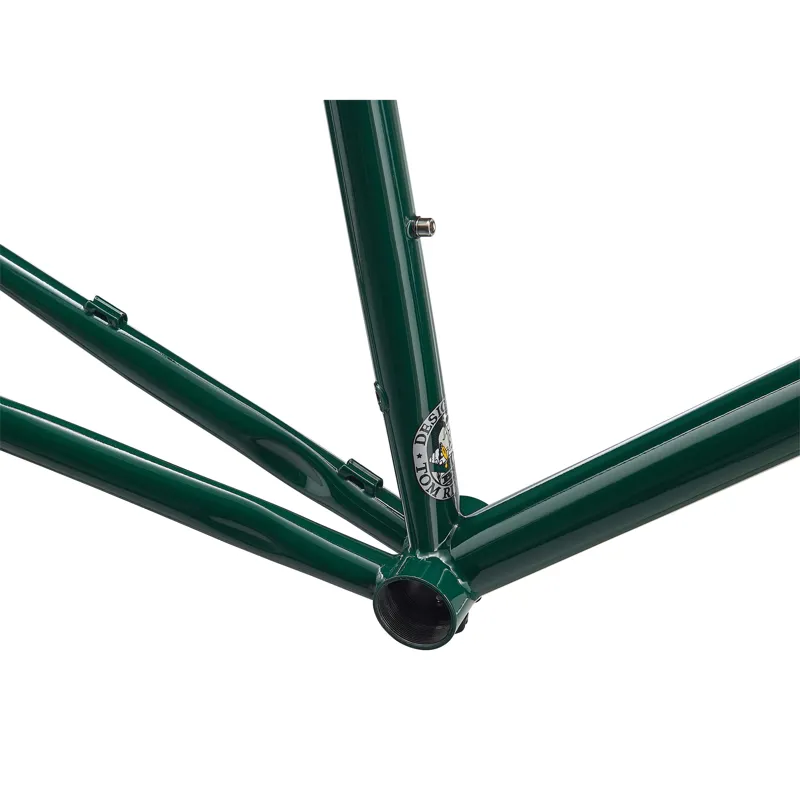

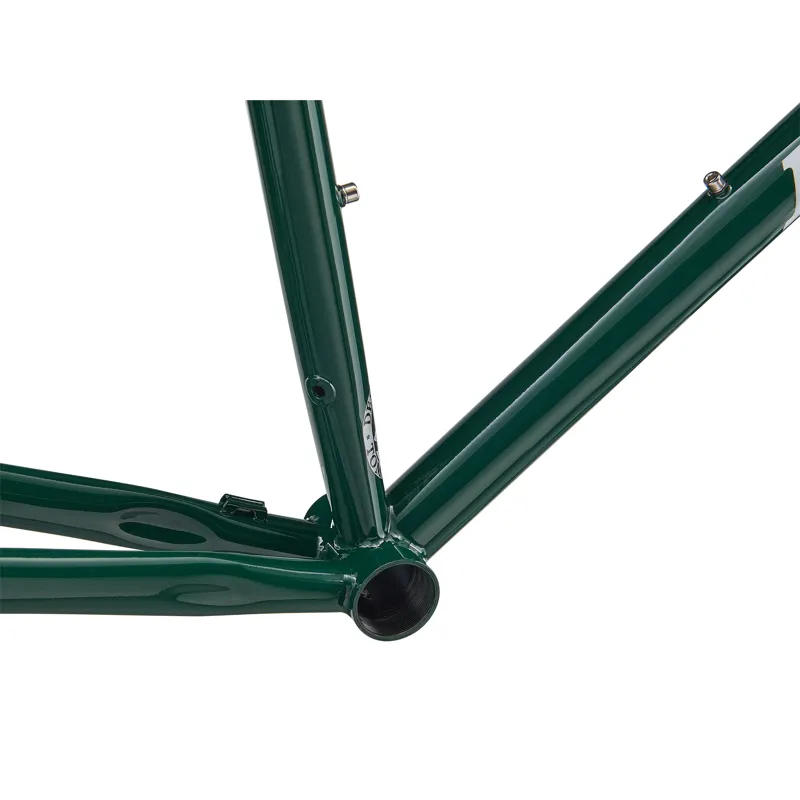

  • Bottom bracket: 68mm - english threaded
  • Can accommodate 1x or 2x chainrings
  • Crankset min/max ring size - single: 36 to 50t / double: 46/30t to 53/39t
  • External cable routing
  • Bottle mounts: 2
  • Ritchey wcs carbon disc road fork included
  • 1-1/8" straight steerer with integrated 45-degree crown race
  • 100mm spacing (12mm alloy thru-axle included)
  • Steerer length: 300mm
  • Axle-crown: 371mm
  • Rake/offset: 46mm
  • Wheel and tire compatibility: 700 x 30c tire clearance (depending on tire/rim manufacturer)
  • Frame max spacing: 39mm
  • Fork max spacing: 40mm
  • Flat-mount brakes front and rear: 140mm (160mm max - adaptors available separately)
  • Frame flat-mount bracket height: 10mm
  • Sizes: 49 / 51 / 53 / 55 / 57 / 59cm
  • Frame weight: 1.79kg (size 55 - w/o thru-axle)
  • Fork weight: 390g (with uncut steerer / not including axle)
Sizing Information

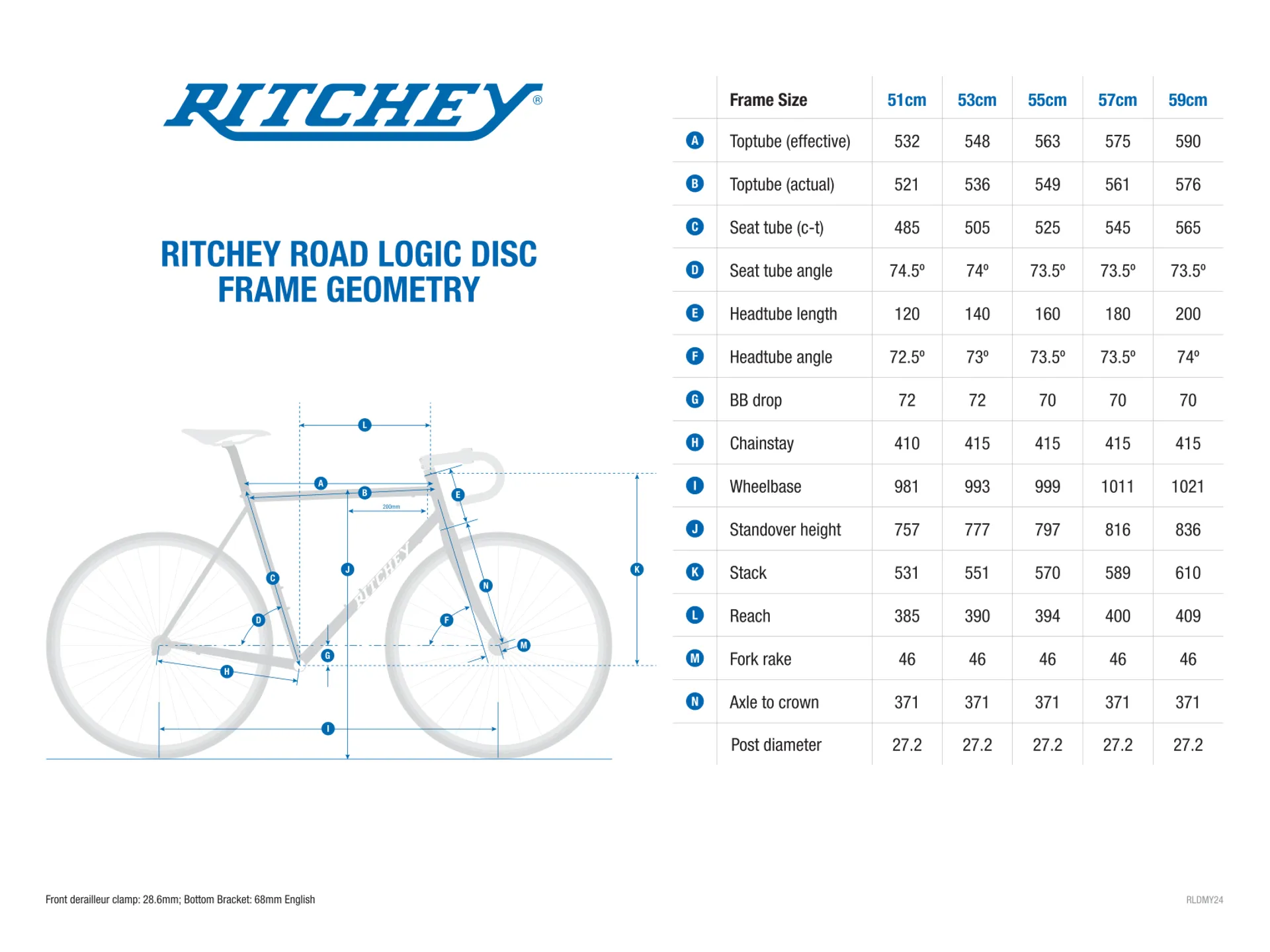

Ritchey Road Logic Geometry
