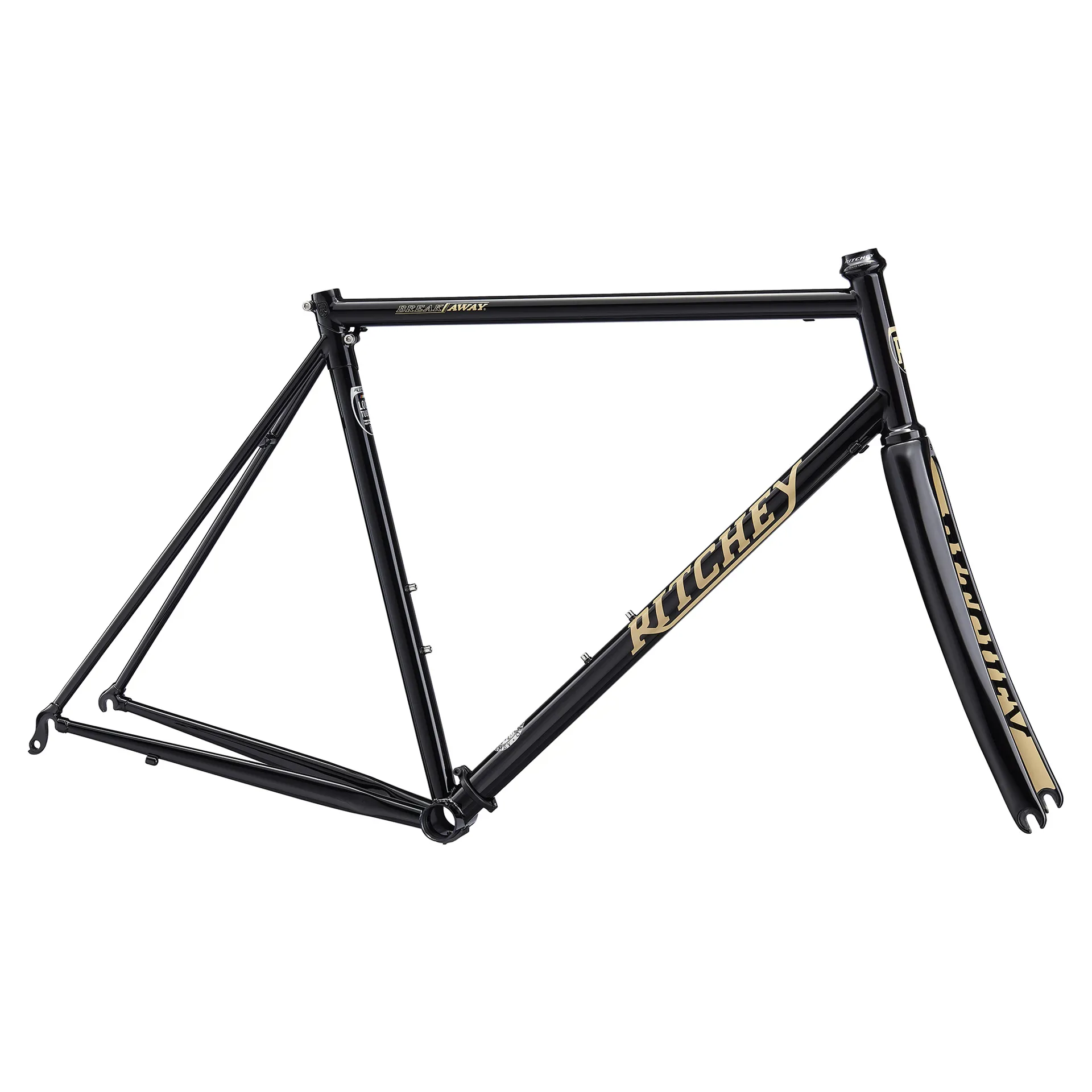

Ritchey Breakaway Road Frame Kit in Black

Brand:Ritchey

Code:RT97352817006Blk

Avoid the extra baggage fees, but still fully experience adventures by bike when you travel.

The Ritchey break-away road frame is a full-size bike can be split apart to fit into its own special travel case that's basically the same size as a normal checked bag at the airport.

The break-away road frame is made from ritchey heat treated, crmo butted steel tubing, and includes a ritchey wcs carbon fork and headset. Aside from it's fantastic ride performance, the magic of this bike is in its patented locking compression system, which adds only 100 grams to the weight of the bike. The downtube is split near the bottom bracket and is fastened together with a simple locking ring. A double seatpost clamp up top secures the frame there. This system is strong and completely reliable - you'll never know you're riding a bike that you can split in half and pack in its own bag in less than twenty minutes.

Case, padding, cable disconnects and couplers also included in frame kit.

Features:

  • Patented ritchey break-away® design
  • Material: heat-treated, triple-butted ritchey logic steel tubing - tig welded
  • Ultra-light forged and machined straight 1-1/8" headtube
  • Wcs headset included (upper is42/28.6 - 16mm stack height | lower is42/30)
  • Standard quick release front and rear
  • 27.2mm seat tube with integrated seat collar (max torque setting: 6nm)
  • Front derailleur clamp size: 28.6mm (max torque setting: 2.5nm) - not included
  • Bottom bracket: 68mm - english threaded
  • Crankset min/max ring size: 46/30t to 53/39t
  • External cable routing
  • Bottle mounts: 2
  • Ritchey wcs carbon road fork included
  • 1-1/8" straight steerer with integrated 45-degree crown race
  • Steerer length: 300mm
  • Axle-crown: 371mm
  • Rake/offset: 46mm (sizes 49/51/53cm) – 43mm (sizes 55/57/59cm)
  • Wheel and tire compatibility: 700 x 30c tire clearance (depending on tire/rim manufacturer)
  • Frame max spacing: 38mm
  • Fork max spacing: 40mm
  • Sizes: xs / s / m / l / xl
  • Frame weight: 1.99kg (size l)
  • Fork weight: 350g (uncut steerer)
  • Break-away travel case and padding included (8.5” / 21.6cm w x 26.5” / 67.3cm h x 31” / 78.8cml w/ wheels)
  • Downtube hinge clamp, rear brake cable connector and derailleur cable connectors included
