Class-leading efficiency
Combining best-in-class stiffness-to-weight with strategically placed aero tube shaping, this frameset is engineered for faster climbing, explosive acceleration and unyielding pedalling stiffness for race-winning performance.
Advanced aerodynamics
This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analysed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.
Total control

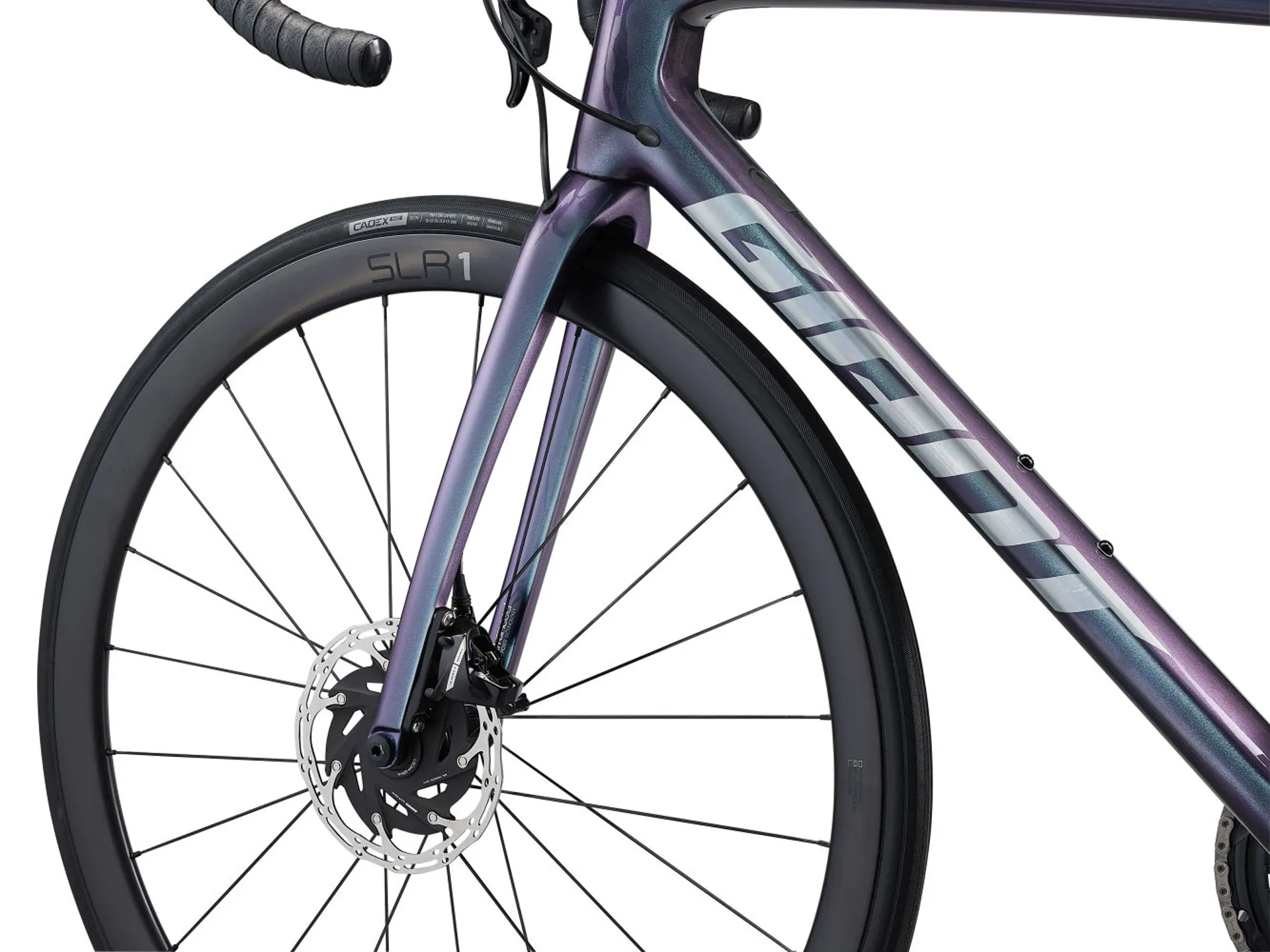

Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mount brakes and thru-axles boost stiffness and improve overall handling.
SizesS, M, M/L, L, XL
ColoursGloss Blue Dragonfly/Chrome
FrameAdvanced-grade composite, disc
ForkAdvanced-grade composite, full-composite OverDrive 2 steerer, disc
ShockN/A

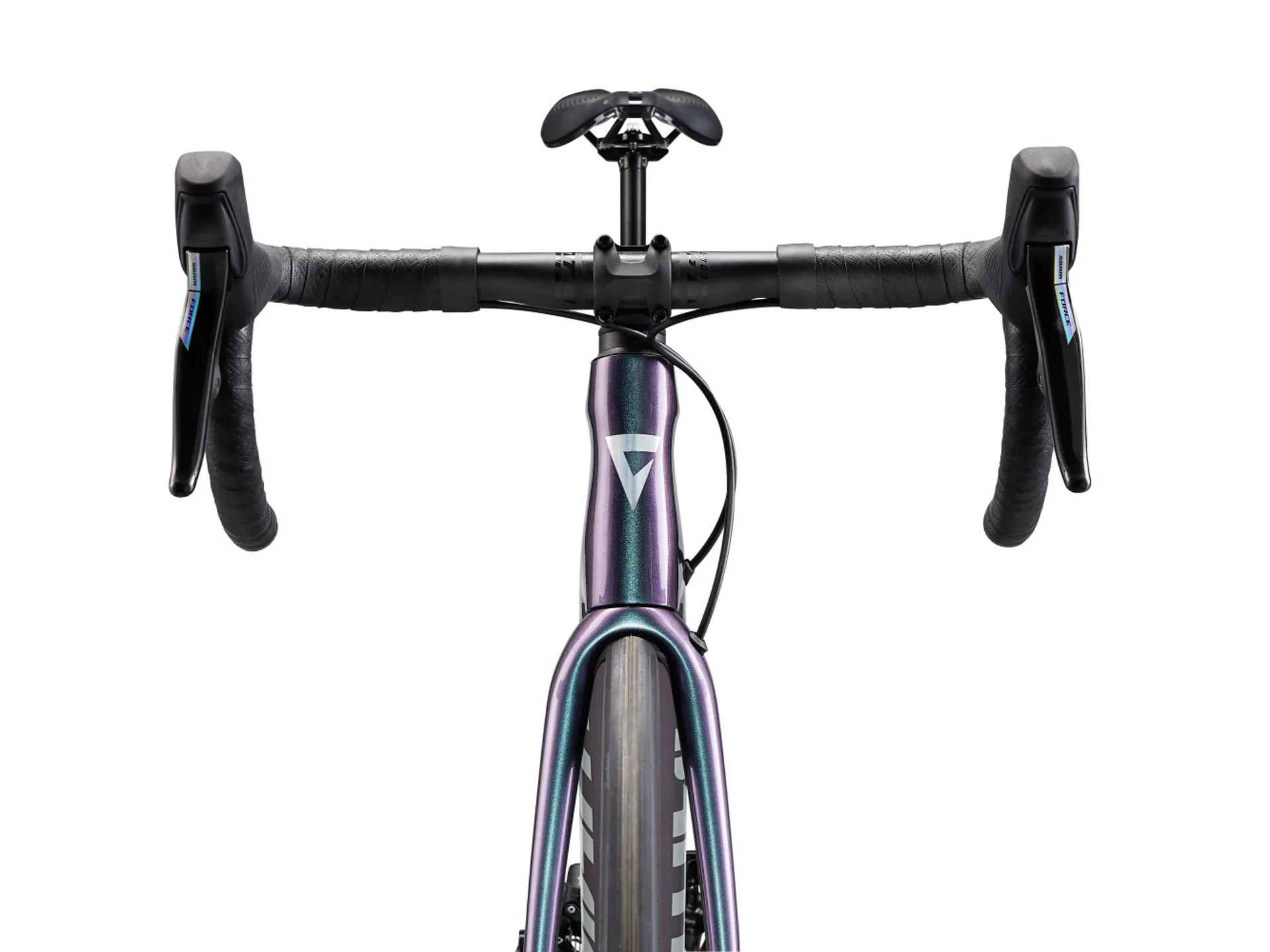

HandlebarGiant Contact SLR S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
GripsStratus Lite 2.0
StemGiant Contact SL S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
SeatpostGiant Variant, composite, -5/+15mm offset
SaddleGiant Fleet SL
PedalsN/A
ShiftersSRAM Force AXS 2x12
Front DerailleurSRAM Force AXS
Rear DerailleurSRAM Force AXS
BrakesSRAM Force AXS hydraulic, SRAM CenterLine XR rotors [F]160mm, [R]140mm
Brake LeversSRAM Force eTap AXS hydraulic
CassetteSRAM Force, 12-speed, 10x33
ChainSRAM Force D1

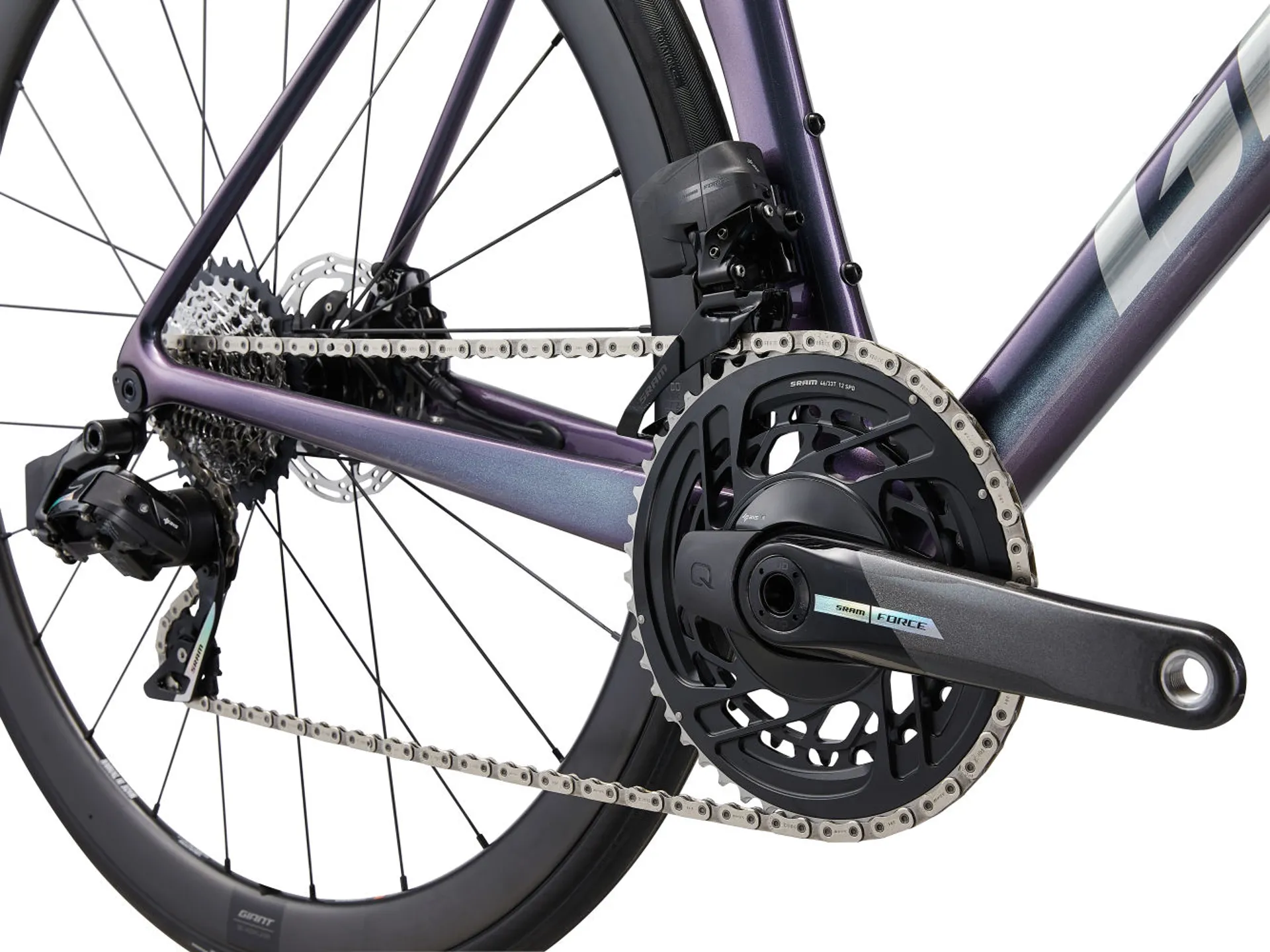

CranksetSRAM Force D1 DUB, 33/46 with Quarq Dzero power meter S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom BracketSRAM DUB, press fit
RimsGiant SLR 1 36 Carbon Disc WheelSystem, [F] 36mm, [R] 36mm
Hubs[F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 30t ratchet driver, CenterLock, 12mm thru-axle
SpokesSapim CX-Ray
TyresCADEX Race, tubeless, 700x25c (26.5mm), folding
Extrascomputer mount, factory tubeless set up, 32mm max tyre size
WeightThe most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
