Class-leading efficiency
Combining best-in-class stiffness-to-weight with strategically placed aero tube shaping, this frameset is engineered for faster climbing, explosive acceleration and unyielding pedalling stiffness for race-winning performance.
Advanced aerodynamics
This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analysed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.
Total control
Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and new thru-axles boost stiffness and improve overall handling.
SizesXS, S, M, M/L, L, XL
ColoursGloss Panther/Shoreline
FrameAdvanced-grade composite, disc
ForkAdvanced-grade composite, full-composite OverDrive steerer, disc
ShockN/A

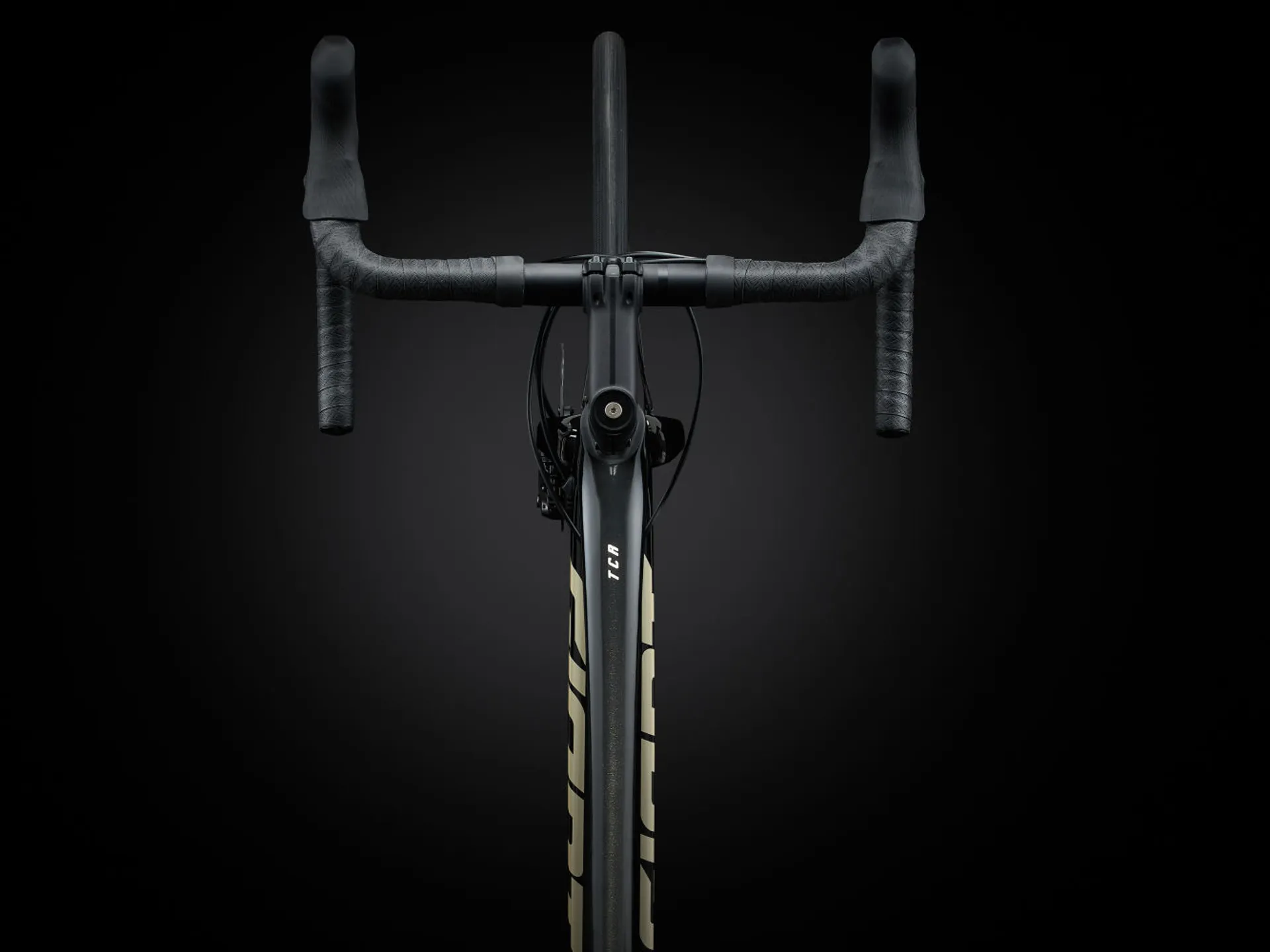

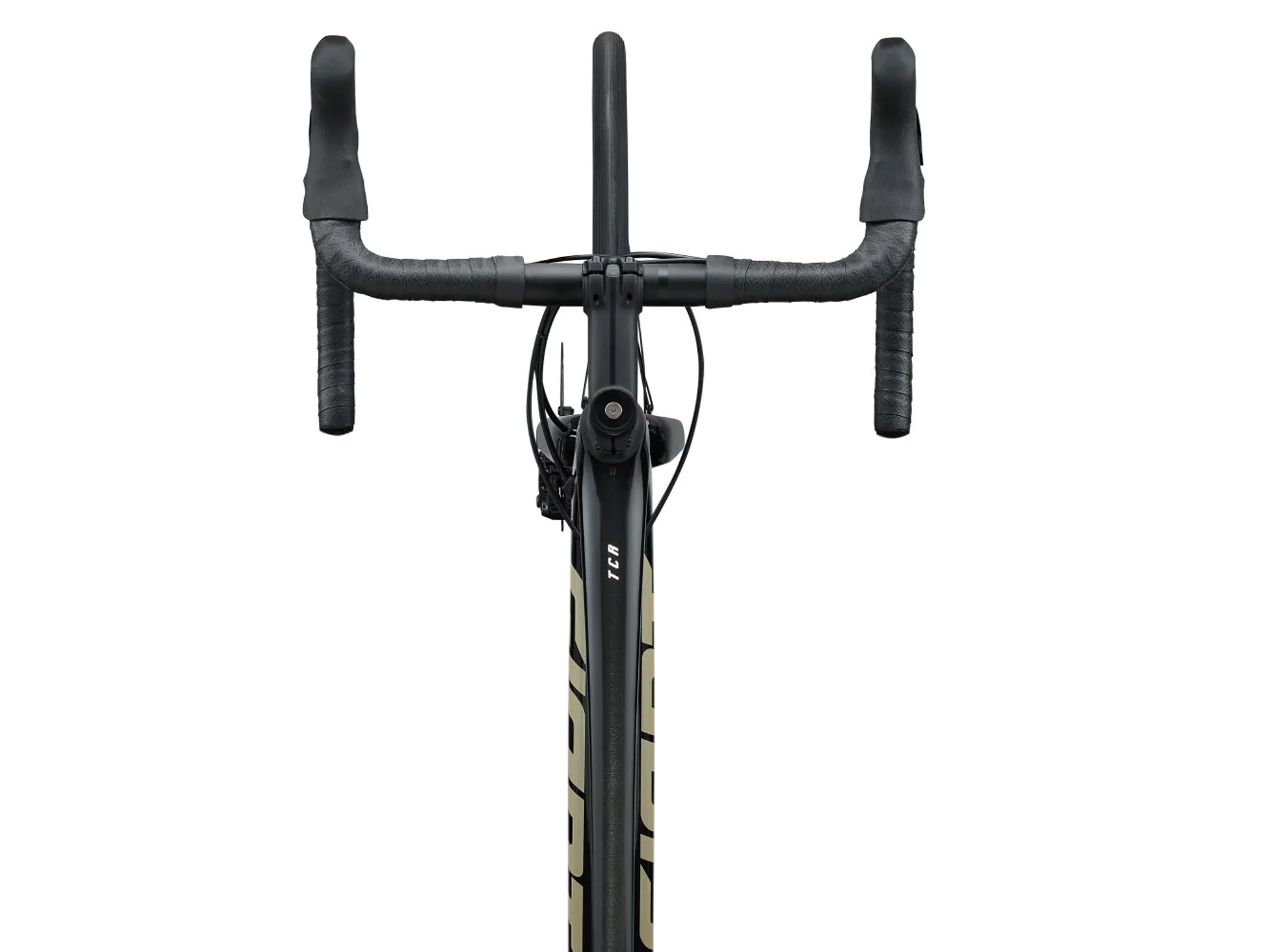

HandlebarGiant Contact XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
GripsStratus Lite 2.0
StemGiant Contact XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
SeatpostGiant Variant, composite, -5/+15mm offset
SaddleGiant Approach
PedalsN/A
ShiftersShimano 105 2x12
Front DerailleurShimano 105
Rear DerailleurShimano 105
BrakesShimano 105 hydraulic, Giant MPH rotors [F]160mm, [R]140mm
Brake LeversShimano 105 hydraulic
CassetteShimano 105, 12-speed, 11x34
ChainKMC X12L-1
CranksetShimano 105, 36/52 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom BracketShimano, press fit
RimsGiant P-R2 Disc wheelset, alloy
HubsGiant alloy, 12mm thru-axle
SpokesSapim
TyresGiant Course 1, tubeless, 700x25c (28mm), folding
Extrasfactory tubeless set up, 32mm max tyre size
WeightThe most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
