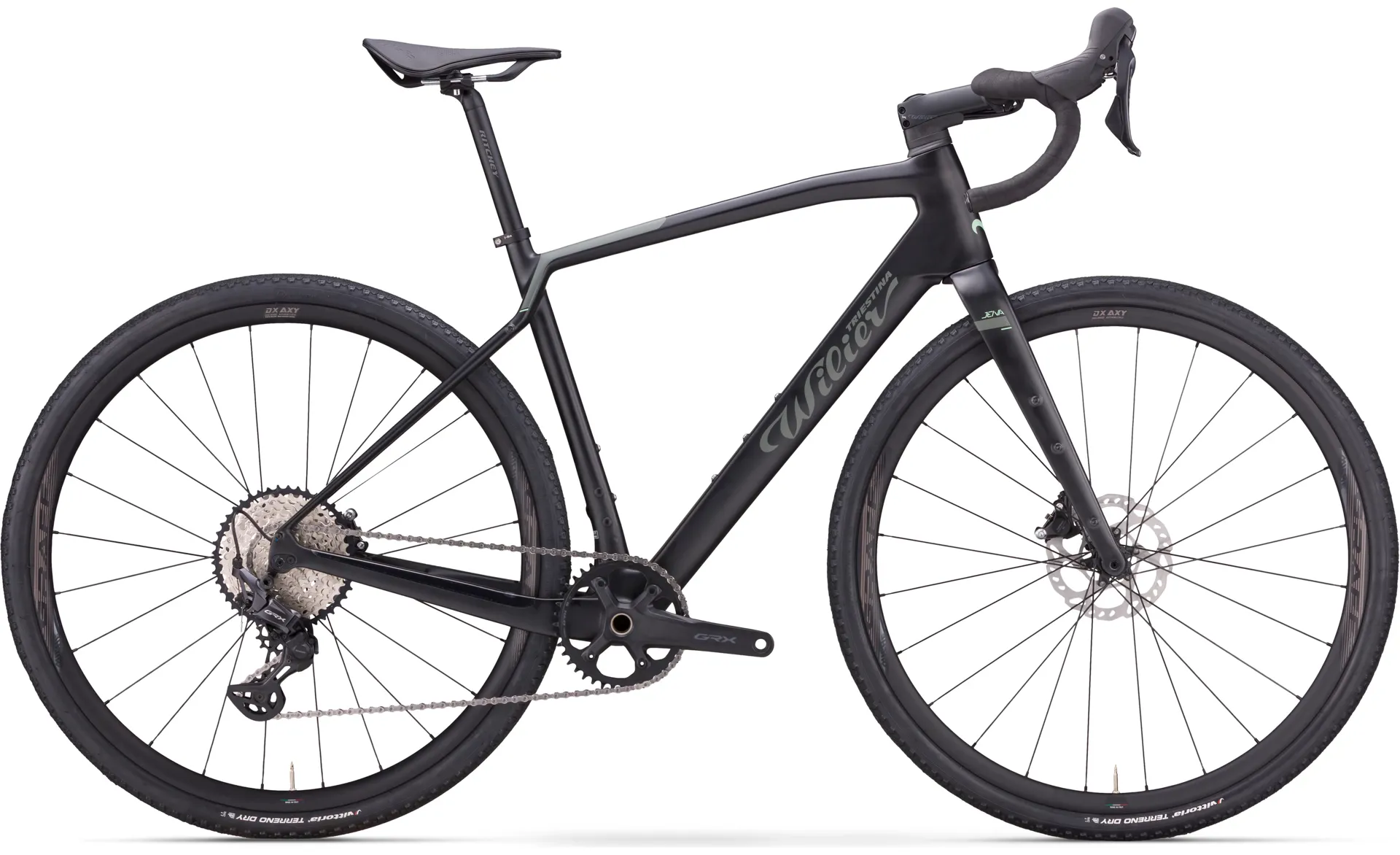

Jena is a carbon gravel bike, designed to give you more freedom of choice when you go out for a ride. Jena was designed to satisfy any of your needs, whether it is performance on dirt roads and single track, or adventure, exploration, and bikepacking.
Jena is a light, reactive, and easy-to-handle bike with racing-comfort geometries, and able to adapt to the multiple uses required of a gravel bike.

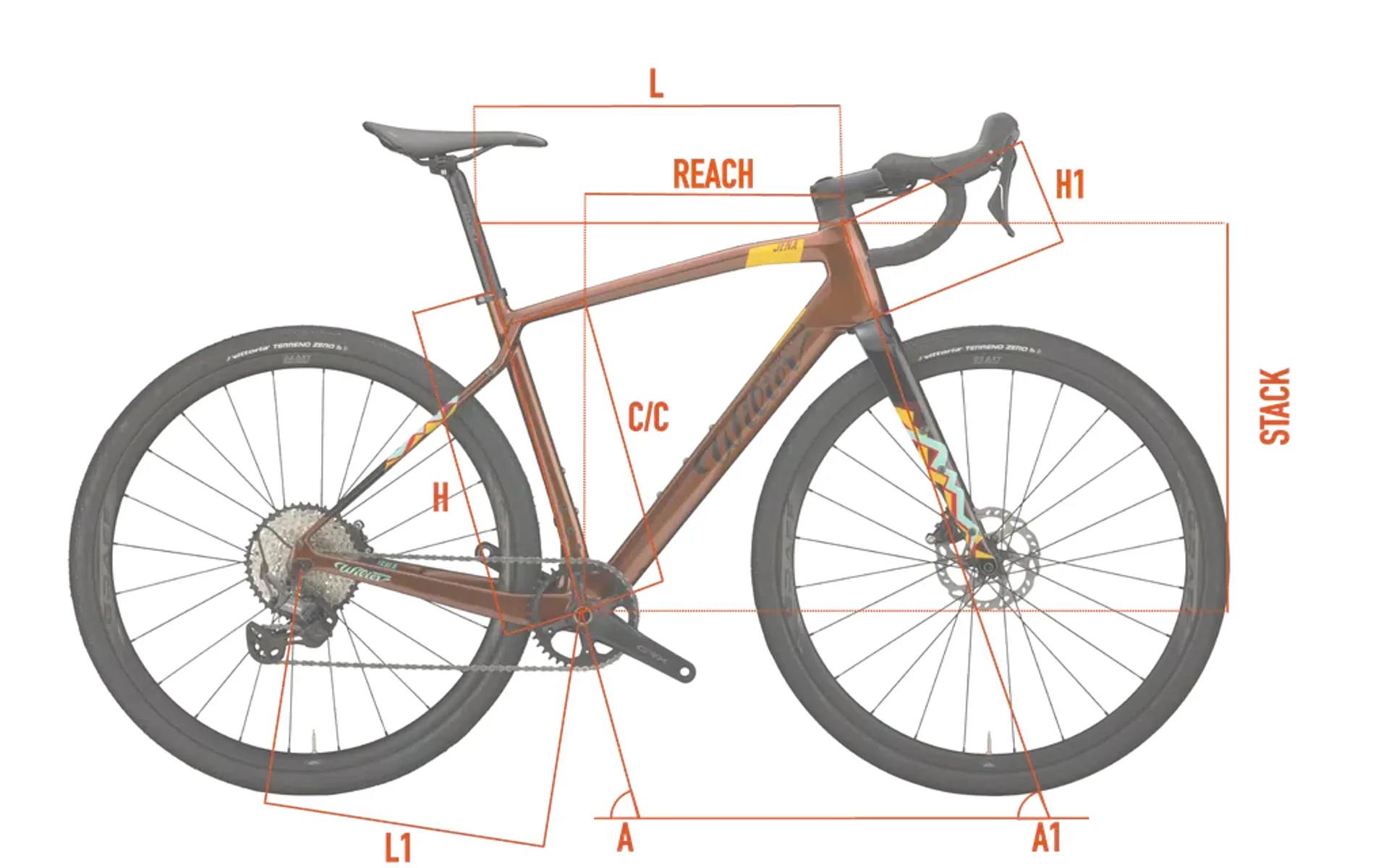

Racing comfort geometries
Jena's 60TON monocoque carbon frame comes in 5 sizes (from XS to XL) with geometries that allow a high level of comfort, without sacrificing reactivity and performance, which is very close to the one of Wilier's racing bikes.

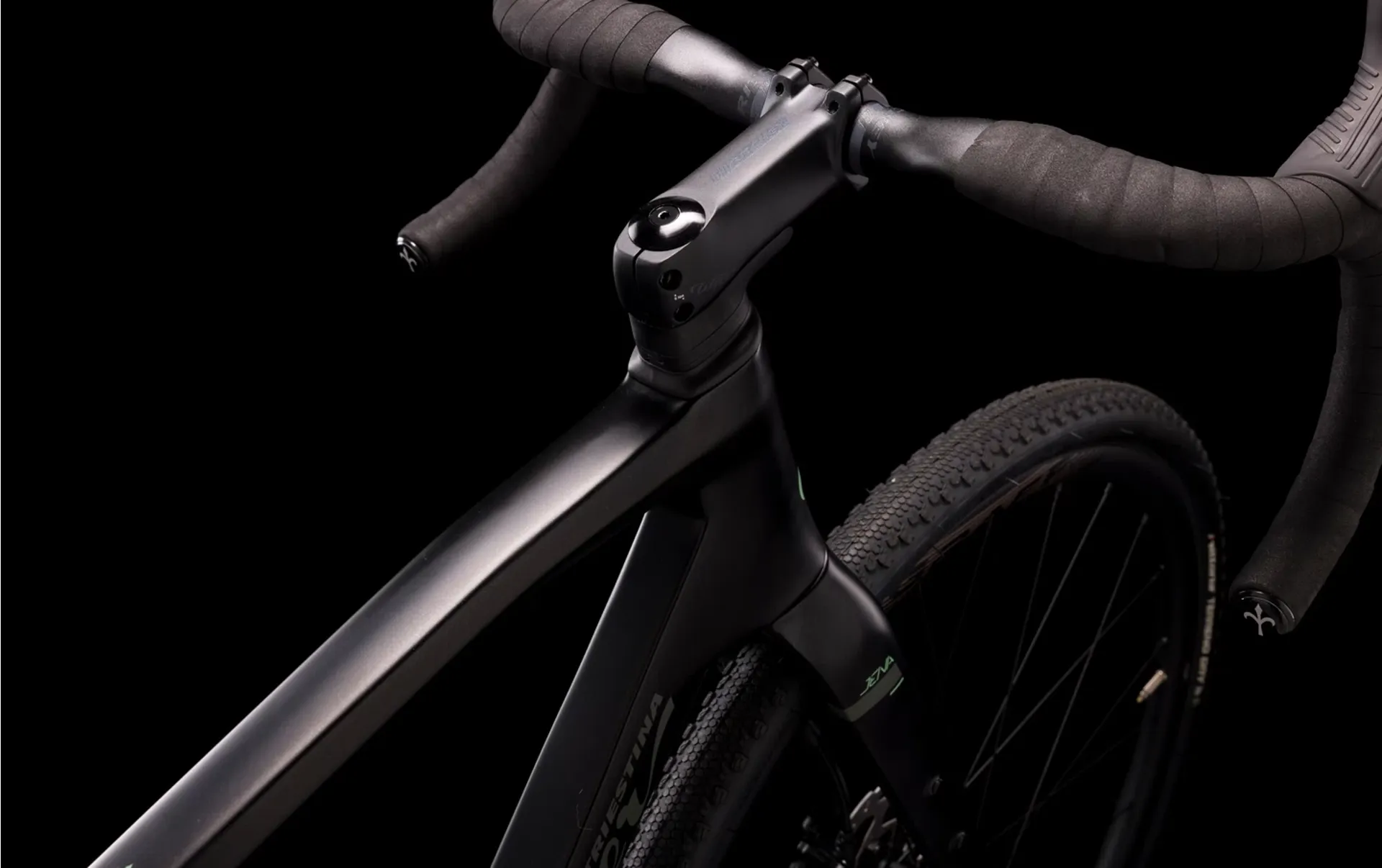

The head tube, with a more open angle, ensures riding quality and stability also on the most difficult tracks. On the other hand, the rear triangle was designed to have a more distinct response to vertical stress, absorbing thus great part of the vibrations generated by the ground imperfections.
Usability
There are no limits on Jena usability and to the available configurations. The span between frame / fork and wheels allows you to install generous tyres on 28” wheels or MTB wheels with a 650B diameter. With 28” wheels you can install tyres up to 44 mm wide, whereas in case of 650B MTB wheels, you can even install 48 mm wide tyres, which is equivalent to 1.95” (tested on Vittoria tyre).

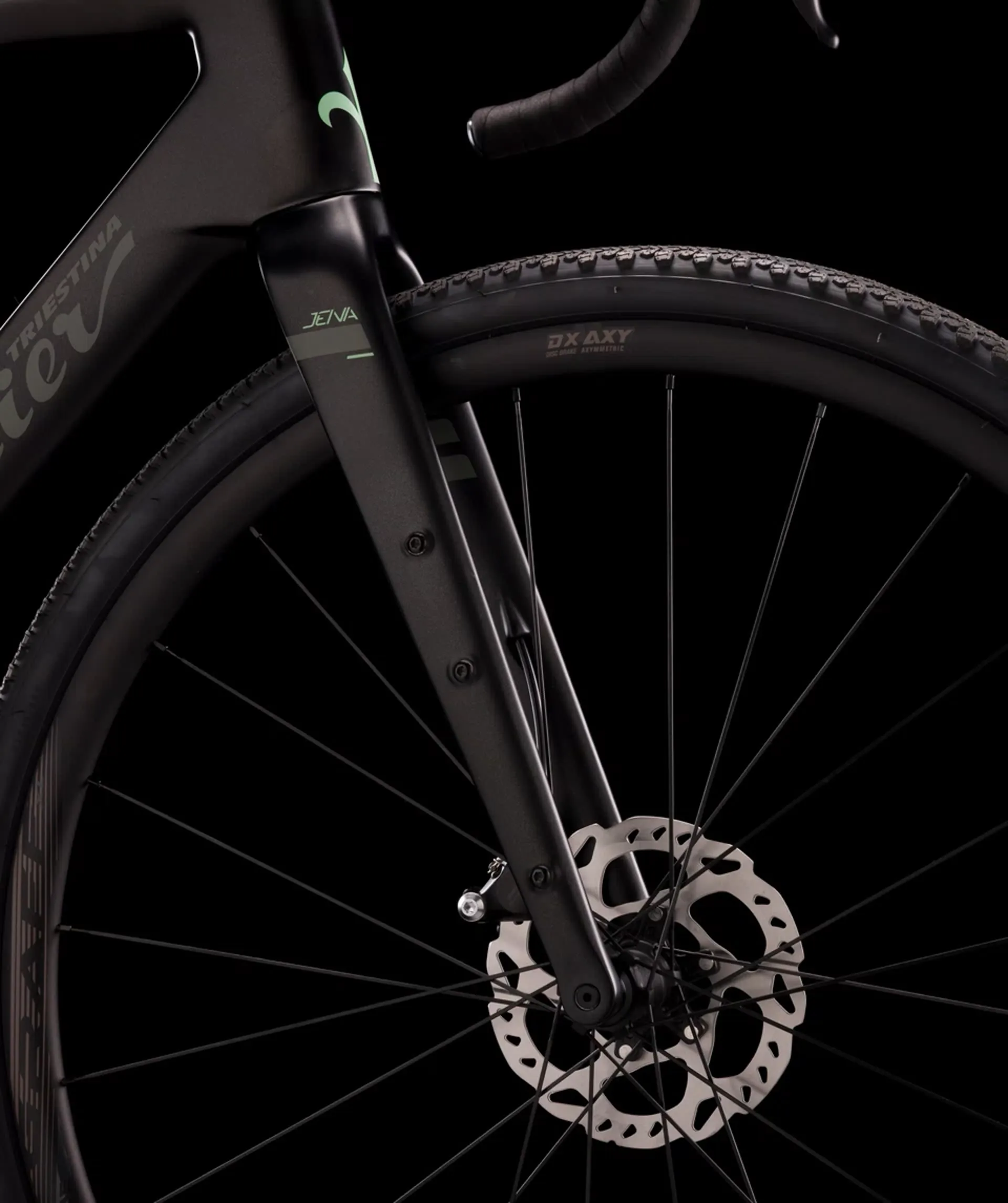

There are numerous available supports that allow the installation of bottle holders, bags, carriers or mudguards. On the front fork, for example, you can install two bottle holders or one lowrider carrier for bags.
Kamm tail design
An aerodynamic oblique tube was developed for Jena. This gives the classic truncated tail shape of Wilier's aerodynamic frames.
Removable derailleur support

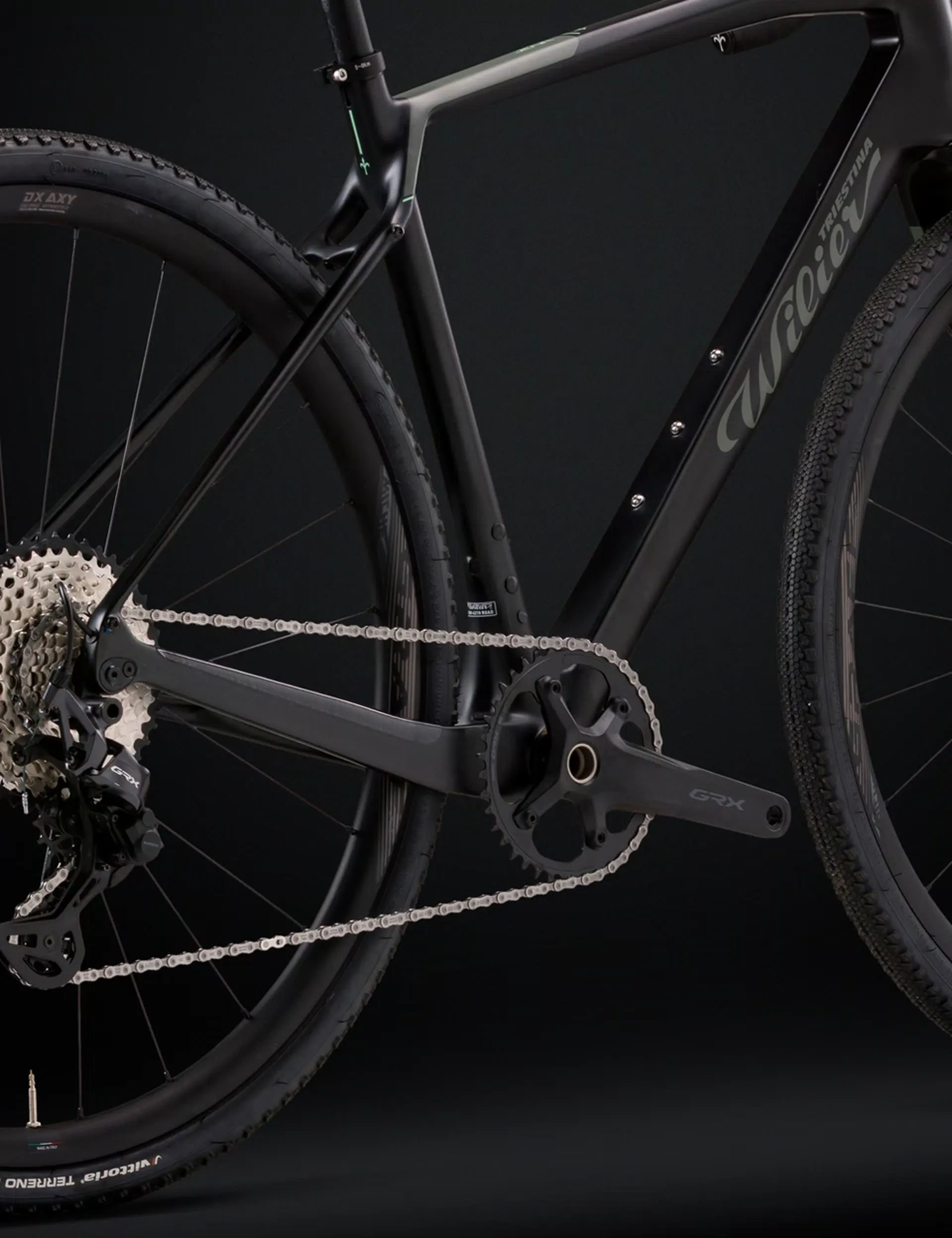

The derailleur support can be removed in case of single ring group, which is a transmission widely used by gravel enthusiasts. In any moment, you can choose a solution with double or single crankset, without compromising on the bike look.
Videos
Frame
FRAME JENA INT.CABLE M BLACK GREY MATT
Fork
FORK JENA BLACK GREY MATT
Handlebar stem
WILIER STEMMA S2 ALU STEM 100 BLACK
Handlebar
RITCHEY H-BAR ROAD CMP ERGOMAX ALU BBK42
Seatpost
RITCHEY SEATPOST RL1 BBK 2B 27.2X350 OE
GROUPSET
SHIMANO GRX 1X12
Wheelset
MICHE GRAFF ALU DISC 25mm
Crankset
SHIMANO CRANK FC-RX6101 12S 172 40T
Cassette
SHIMANO CASSETTE CS-M7100 10-45
Brakes
SHIMANO SHIFTER RX6102 FR. 12S 090 OEM
SHIMANO SHIFTER RX6101 RE. 12S 160 OEM
Rotors
SHIMANO ROTOR RT-CL700 S 160 W/LRING
Rear derailleur
SHIMANO REAR DER. RD-RX822 GS
Bottom bracket
MICHE BB PRESSFIT 86.5-41 OEM
Chain
SHIMANO CHAIN M6100 128L.
Axle / Thru axle
MICHE PER 12X171 1P1.5 POST BLACK
MICHE PER 12X125 1P1.5 ANT BLACK
Headset
RITCHEY HEADSET 5MM SPACER BLK
HEADSET MICROSPACER
RITCHEY HEADSET TOP CAP BLK
Tires
VITTORIA T.TERRENO MIX 40-622 ANTH-BK OE
Saddle
SELLE ITALIA MODEL X EVO SF
Bar Tape
WILIER BAR TAPE AM BOX SIXNE004B.BLACK
